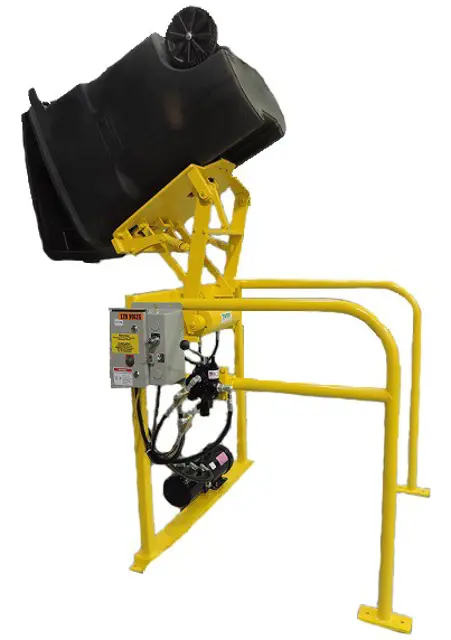

Appalachian Machine Universal / Pan Lifters 3078-BD-7200

Center lifter in front of hopper or compactor that unit will dump into as close as possible.

Drill hole for 3⁄4” concrete anchors or bolts for the two front mounting holes of lifter.

Connect power supply from disconnect to motor starter of lifter.

For power units mounted to lifter remove shipping plug from power unit’s oil fill and check oil level of power unit 1⁄2” below fill hole and replace plug with supplied breather cap.

For stand mounted power unit fill oil reservoir with a W46 hydraulic oil to full level on sight gauge of power unit.

Turn power unit on and check rotation of motor (SEE ARROW) on motor. Note: Unit will not lift if rotation is wrong. If wrong, change wiring to motor starter.

Raise pan up to dump position and check clearance of pan dumping into hopper or compactor. If correct, mount remaining anchors or bolts into mounting holes.

If unit is supplied with safety cage, mount in place.

Check all valves and hose fittings for leaks.
