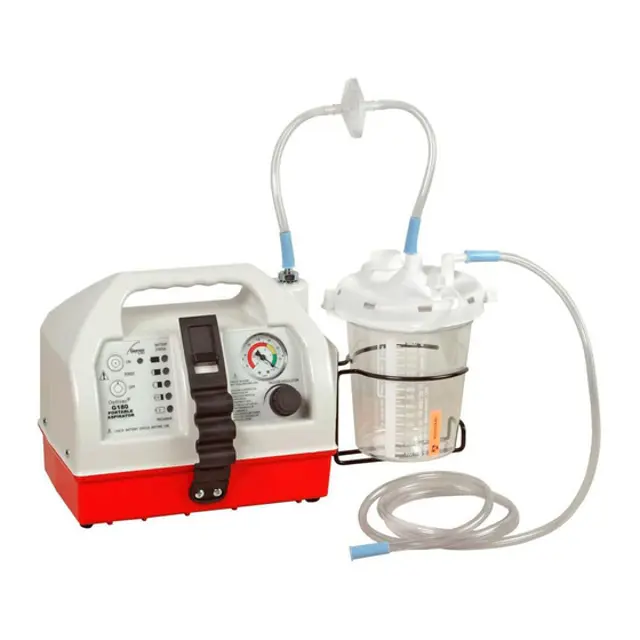

Allied Healthcare Products DC Portable Aspirator G180CE

Remove the regulator and gauge assembly

Remove the gauge and elbow fitting

Replace components with parts from replacement kit

Is the vacuum regulator functioning correctly after replacement?

Remove the Case Back and Case Front from the Case Bottom

Remove the three screws that attach the battery hold down bracket to the Case Bottom

Remove the battery hold down bracket

Remove the Power Supply from the Case Bottom

Disconnect the Wire Assemblies from the Power Supply

Reconnect the Wire Assemblies to the Power Supply

Reattach the Power Supply to the Case Bottom

Remove the power cord from the IEC Connector

Clean the enclosure with a slightly damp cloth

Use a mild solution of soap and water on the cloth

Remove traces of soap with a damp cloth soaked in water

Wipe the unit dry after cleaning

Lift the container from the holder

Remove the accessory port cap or unscrew the jar lid

Remove the Case Back and Case Top from the Case Bottom

Disconnect the Wire Assembly from the connector on the back of the PC Board

Unscrew the screws that attach the PC Board to the Case Top

Remove the Case Back and Case Front from the Bottom

Disconnect the brown wire connection from the battery (+)

Disconnect the green wire connection from the battery (-)

Remove the three screws attaching the battery hold down bracket to the Case Bottom

Remove the battery hold down bracket

Lift up and remove the battery carefully
