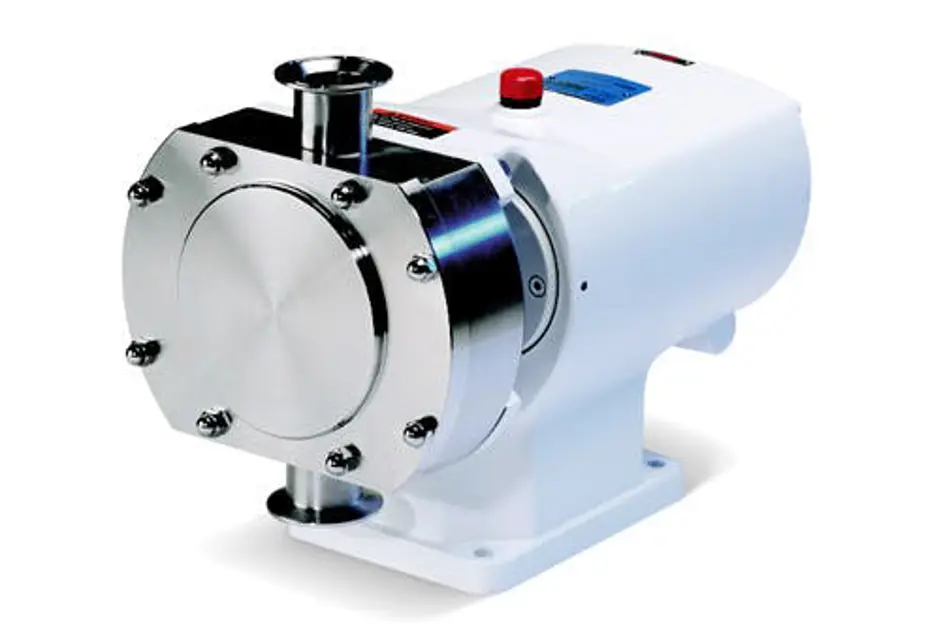

The Alfa Laval Rotary Lobe Displacement Pump GHPD-832 is designed for efficient fluid transfer in various industrial applications. Known for its reliability and performance, this pump features advanced engineering to handle a wide range of viscosities while ensuring minimal maintenance requirements. Optimize your operations with this robust asset from Alfa Laval.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Find all the essential guides in one place.
Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more
Pre-built workflows to keep your asset running smoothly.
Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more
Integrate maintenance plans directly into your work orders.
Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more
Access the parts list for your equipment in MaintainX.
Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Alfa Laval Rotary Lobe Displacement Pump GHPD-832
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
Packed Gland with Flush Adjustment
CAUTION! DRIP LEAKAGE IS ESSENTIAL TO PREVENT OVER HEATING OF THE GLAND AREA WHICH WILL CAUSE SEAL FAILURE.
IMPORTANT! Stop and remove gland guard for checking temperature of housing and observing leakage. ALWAYS REPLACE THE GUARD BEFORE RESTARTING.
1. Lightly tighten up the gland follower.
2. Flood the pumphead and determine if the gland leakage is acceptable. Tighten the gland follower nuts until an acceptable leakage is achieved.
3. Start the pump and allow to run for 10 minutes. If the gland becomes significantly hotter than other parts of the pump, the gland is too tight.
4. Stop the pump and allow it to cool then repeat the above until the gland temperature is stable and gland slightly weeping.
5. Run the pump at 10 minute intervals tightening the gland follower nuts by a ½ of a turn until the leak is at an acceptable rate.;
Pressure Relief Valve Replacement
CAUTION! COMPLETE DISASSEMBLY IS ONLY REQUIRED IF THE 'O' RINGS OR SPRINGS ARE TO BE REPLACED.
- The relief valve should not be disassembled while the plug is in operation. Always observe the safety precautions detailed at the front of this manual.
- Take extreme care when removing the springs as they have been compressed.
• Disassembly
1. Remove the valve housing.
2. Release and remove the notched nuts) with the spring adjuster.
3. Take off the springs, release the socket head cap screws and remove the valve guide.
4. Access to the pneumatic piston 'O' rings is achieved by releasing the circlip which locates in the valve shaft.
5. The hydraulic piston with the shaft may be lifted out of the front cover once the backstop disc is removed.
Initial 150 Hours Lubrication Oil Replacement
1. The pump will NOT be supplied oil filled.
2. First change - After 150 hours of operation.
3. Only use the oil/grease types recommended by your supplier.
4. Fill with oil through the filler plug to the level indicated in the sight glass.;
O-Ring Seal Replacement
– The large 'O' ring sits within the rotorcase bore and runs on the shaft sleeve. Rotation for the shaft sleeve is provided by a spring which locates in a slot on the shaft. An 'O' ring seals the shaft sleeve to the shaft.
REMOVING THE 'O' RING SEAL
1. Remove the rotorcase.
2. Slide the shaft sleeve from the shaft and inspect the 'O' rings.
FITTING THE 'O' RING SEAL
1. Lightly lubricate the 'O' rings with greas (food quality if necessary), locate in the shat sleeve and rotorcase bore.
2. Slide the shaft sleeve onto the shaft an locate the pin into the slot on the shaft.;
Packed Gland Replacement
– The packing rings are located within the gland housing and are tightened onto the shaft sleeve by adjusting the gland follower. On flushed packed glands a lantern ring replaces the middle ring of packing. The shaft sleeve is retained to the shaft by three socket set screws and is sealed by an 'O' ring.
REMOVING THE PACKED GLAND
1. Release and pull back the gland follower.
2. Remove the rotorcase with gland housing, packing and gland follower still assembled.
3. Loosen the shaft sleeve socket set screws and extract the sleeve from the shaft.
4. Inspect and replace the packing and shaft sleeve if necessary.
FITTING THE PACKED GLAND
1. Lubricate the 'O'ring, locate in shaft sleeve and slide onto the shaft.
2. Tighten up the socket set screws.
