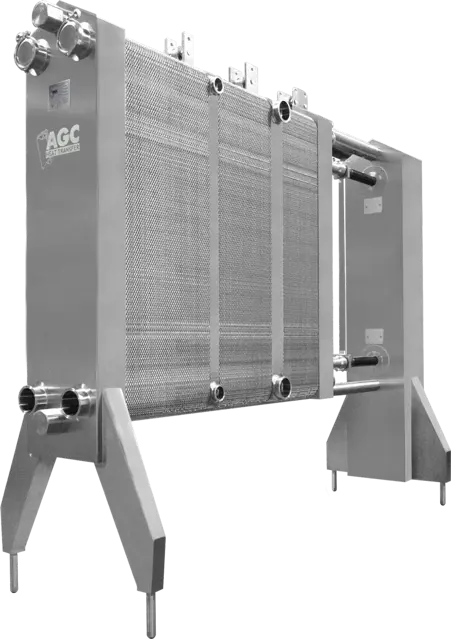

AGC Heat Transfer Heat Exchanger AR51-M

Check for cracks or tears in the gasket

Check for hardness or brittleness

Inspect for signs of material breakdown or erosion

Rub gasket to check for polymer breakdown

Check for obvious signs of erosion

Ensure the heat exchanger is turned off and cooled down

Gather necessary tools and safety equipment

Check for visible signs of wear or damage

Inspect the condition of the gaskets

Record the inlet and outlet temperature readings

Are the temperature readings within the normal operating range?

Inspect plates for signs of damage or leaks

Are there large indentations or evidence of corrosion?

Has the unit been subjected to hydraulic shock or over pressurization?

Are the gasket grooves permanently deformed?

Are there any unwanted bends on the plates?

Professional Inspection Recommendation

Is a professional inspection needed due to detected issues?

Inspect the frame for signs of damage or leaks

Stainless Steel Cladding Inspection

Is the frame stainless steel clad?

Check the cladding for signs of cracks or leaks

Describe any cracks in the cladding or ports
