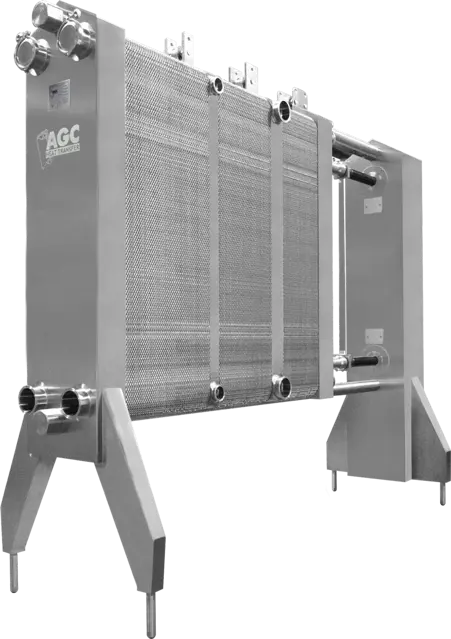

AGC Heat Transfer Heat Exchanger Pro31-H

Check for cracks or tears in the gasket

Check if the gasket is hard or brittle

Check for signs of compression set (permanent deformation)

Rub the gasket with your thumb or finger to check for black residue

Does the gasket leave a black residue on your finger?

Check for signs of erosion along the inner edge of the gasket

Inspect plates for signs of damage or leaks

Are there large indentations or evidence of corrosion?

Has the unit been subjected to hydraulic shock or over pressurization?

Are the gasket grooves permanently deformed?

Are there any unwanted bends on the plates?

Professional Inspection Recommendation

Is a professional inspection needed due to detected issues?

Ensure the heat exchanger is turned off and cooled down

Gather necessary tools and safety equipment

Check for visible signs of wear or damage

Inspect the heat exchanger fins for damage or blockage

Record the inlet and outlet temperature readings

Are the temperature readings within the normal operating range?

Inspect the frame for signs of damage or leaks

Stainless Steel Cladding Inspection

Is the frame stainless steel clad?

Check the cladding for signs of cracks or leaks

Describe any cracks in the cladding or ports
