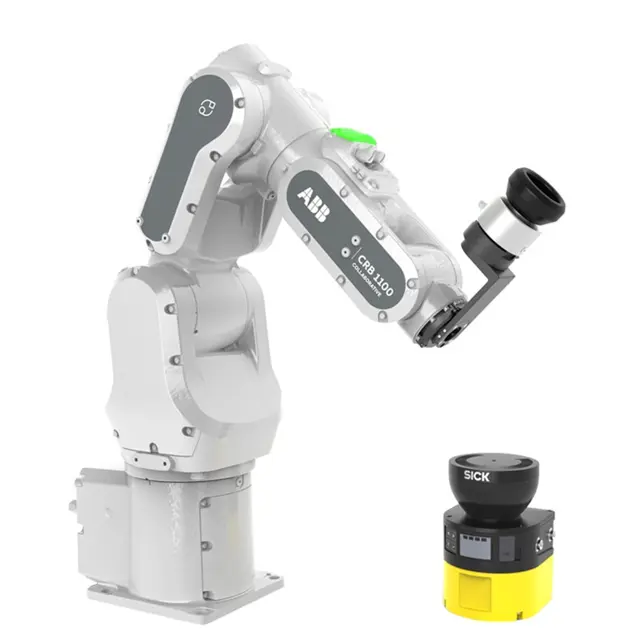

ABB Robot Arm CRB 1100-4/0.475

Create an account to install this asset package.

Maintenance Plans for ABB Robot Arm Model CRB 1100-4/0.475

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Cable Package Lubrication

Danger: Turn off all electric power supply, hydraulic pressure supply, air pressure supply to the robot, before entering the robot working area.

All power supplies turned off?

Access to the cable package gained by removing the covers?

Cable package checked for damage or wear?

If any damage or wear is detected, the part must be replaced!

Grease applied to the cable package, covering all moving area of the package?

Grease applied to the covers that have contacting area with the cable package?

Run this procedure

1 Yearly Robot Cabling Inspection

Danger: Turn off all electric power supply, hydraulic pressure supply, air pressure supply

Control cabling between the robot and control cabinet inspected

Cabling to motors 1 and 2 inspected

Any abrasions, cuts or crush damage detected?

Cabling replaced if wear or damage was detected

Sign off on the robot cabling inspection

Run this procedure

3 Yearly Timing Belts Inspection

Danger: Turn off all electric power supply, hydraulic pressure supply, air pressure supply to the robot, before entering the robot working area.

Access to each timing belt gained by removing the cover

Timing belts checked for damage or wear

Timing belt pulleys checked for damage

Any damage or wear detected?

If any damage or wear is detected, the part must be replaced!

Sign off on the timing belts inspection

Run this procedure

3 Yearly Battery Pack Replacement

Preparations before removing the battery pack

Choose calibration routine

All axes jogged to zero position

All supplies for electrical power, hydraulic pressure, and air pressure turned off

Disconnecting the SMB connectors

All supplies for electrical power, hydraulic pressure, and air pressure turned off

SMB cover attachment screws removed and cover carefully opened

Connectors disconnected: SMB.P7, SMB.J1, SMB.J2

Upload photo of connector and cable position before disconnecting

Run this procedure

1 Yearly Information Labels Inspection

Danger: Turn off all electric power supply, hydraulic pressure supply, air pressure supply to the robot, before entering the safeguarded space.

All power supplies turned off?

Labels inspected?

Select the location of inspected labels

Any missing or damaged labels?

Upload a photo of the replaced labels

Sign off on the label inspection

Run this procedure
