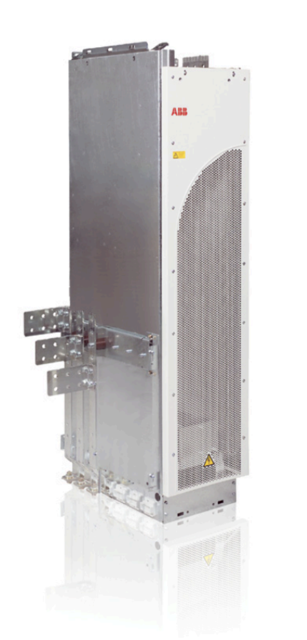

ABB Drive Module ACQ810

Create an account to install this asset package.

Maintenance Plans for ABB Drive Module Model ACQ810

Integrate maintenance plans directly into your work orders in MaintainX.

9 Yearly Replacement

- JINT Board and Flat Cable Change.

- Contact ABB.;

Run this procedure

50000 Hours/3 Yearly Replacement

- Change cooling fan every 3 years if the ambient temperature is higher than 40°C (104°F).;Otherwise, every 6 years.

- The lifespan of the cooling fan of the drive module is about 50,000 hours. The actual lifespan depends on the running time of the fan, ambient temperature, and dust concentration. See the appropriate Firmware Manual for the actual signal which indicates the running time of the cooling fan. For resetting the running time signal after a fan replacement, please contact ABB. Replacement fans are available from ABB. Do not use other than ABB specified spare parts.;

Run this procedure

Cleaning

- When necessary, clean the interior of the cabinet with a soft brush and a vacuum cleaner.

- The module heatsink fins pick up dust from the cooling air. The drive runs into over temperature warnings and faults if the heatsink is not clean. When necessary, contact ABB for cleaning of the heatsink.;

Run this procedure

10 Yearly Replacement

- Control Panel Battery Replacement. The battery is housed on the rear of the control panel. Replace with a new CR 2032 battery.;

Run this procedure

3 Yearly Check

- Checking the Condition of Fiber Optic Cables. - See the fault logger. If PPCC LINK faults have recurred, change the fiber optic cables.;

Run this procedure
