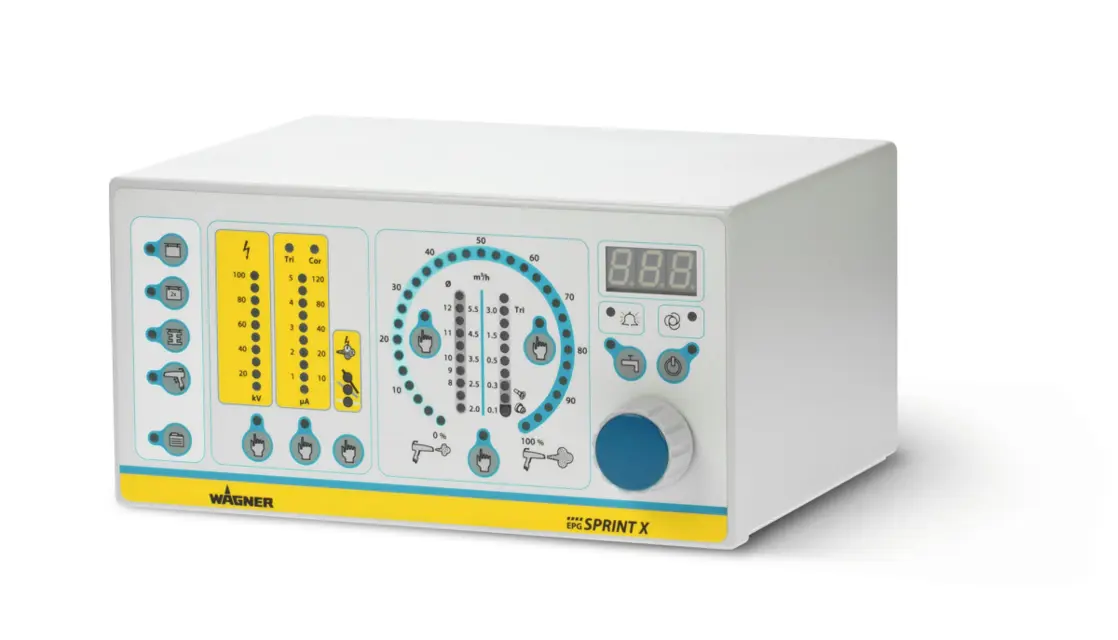

Wagner Portable Powdercoat Unit EPG-Sprint X

Inspect and test whether all parts carrying high-voltage do not result in discharge which puts people at risk

Visual check of ground connections

Perform function test on grounding switch

Measurement of grounding resistors

Measurement of discharge energy

Measure resistance to ground (work piece receiver - ground potential) max. 1 megohm @ 1,000 V

Check the monitoring equipment's test function by triggering it

1. Test whether the system is safely stopped and the product supply, supply air, and high-voltage are switched off when the ventilation is shut down.

- The technical ventilation should be interlocked so that the powder feed and high-voltage cannot be switched on while the technical ventilation is not working effectively.

2. Every 6 Months: Inspect trigger fire extinguishing system, observe manufacturer's requirements.

- Effectiveness of the manually or automatically actuated fire extinguishing systems (room protection system).;

Warning: Cleaning work should be undertaken regularly and carefully by qualified and trained staff.

Warning: Health hazard from inhaling powder lacquer.

Warning: Use of unsuitable cleaning tools and aids can cause damage.

Danger: Explosive powder/air mixes! Danger to life and damage to the device.

High-voltage shut down and locked before starting cleaning?

Spray gun separated from the high-voltage supply before cleaning?

Used only electrically conductive tanks for cleaning liquids?

Preference given to non-flammable cleaning fluids?

Flammable cleaning liquids used only after discharging high-voltage conducting parts?

Warning: Maintenance work should be undertaken regularly and carefully by qualified and trained staff. They should be informed of specific hazards during their training.

Health hazard from inhaling powder lacquer.

Use of unsuitable tools and aids.

Once the maintenance work is complete, the device must be checked by a qualified person to ensure a reliable condition.

DANGER! Incorrect maintenance/repair! Danger to life and damage to the device.

Repair or replacement of devices or parts of devices are only allowed to be performed outside the hazard area by qualified personnel.

Incorrect maintenance/repair! Risk of injury and damage to the device.

Have repairs and part replacements carried out only by specially trained staff or a WAGNER service center.

Before all work on the device and in the event of work interruptions: Switch off the energy/compressed air supply. Relieve spray gun and device pressure. Secure the spray gun against actuation.

Maintenance work should be undertaken regularly and carefully by qualified and trained staff . They should be informed of specific hazards during their training.

The following hazards may arise during maintenance work: Health hazard from inhaling powder lacquer. Use of unsuitable tools and aids.

Once the maintenance work is complete, the device must be checked by a qualified person to ensure a reliable condition.

DANGER! Incorrect maintenance/repair! Danger to life and damage to the device. Repair or replacement of devices or parts of devices are only allowed to be performed outside the hazard area by qualified personnel.

Incorrect maintenance/repair! Risk of injury and damage to the device. Have repairs and part replacements carried out only by specially trained staff or a WAGNER service center.

Before all work on the device and in the event of work interruptions: Switch off the energy/compressed air supply. Relieve spray gun and device pressure. Secure the spray gun against actuation. Observe the operating manual and service manuals at all times when carrying out work.

WARNING! Incorrect maintenance! Risk of injury and damage to the device. If contact with powder products or cleaning agents causes skin irritation, appropriate precautionary measures must be taken, e.g., wearing protective clothing.

The footwear worn by operating staff must comply with EN ISO 20344. The measured insulation resistance must not exceed 100 megohms.

The protective clothing, including gloves, must comply with EN ISO 1149-5. The measured insulation resistance must not exceed 100 megohms.
