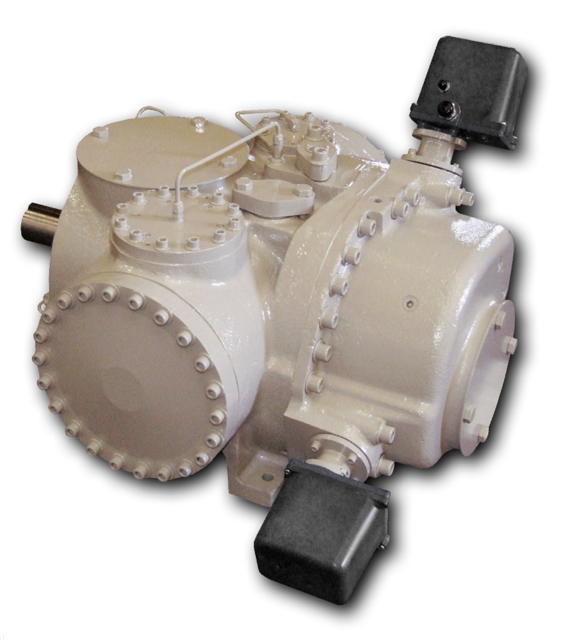

Vilter Manufacturing Compressor VSSG 291

Need answers fast?
Explore the manual using AI.

Vilter Manufacturing Compressor VSSG 291
Vilter Manufacturing Compressor VSSG 291

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Vilter Manufacturing Compressor VSSG 291

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Vilter Manufacturing Compressor VSSG 291

Vilter Manufacturing Compressor VSSG 291

Create an account to install this asset package.

Maintenance Plans for Vilter Manufacturing Compressor Model VSSG 291

Integrate maintenance plans directly into your work orders in MaintainX.

Compressor Shaft Seal Replacement

Check mark

Compressor Shaft Seal Removal

Check mark

Prepare the compressor for servicing

Check mark

Remove bolts holding the shaft seal cover and use jacking holes to assist in removing the cover

Check mark

Remove the rotating portion of the shaft seal

Check mark

Remove oil seal from cover

Check mark

Remove the stationary portion of the shaft seal using a brass drift and hammer

Check mark

Compressor Seal Installation

Check mark

Install new oil seal in cover

Check mark

Install the carbon cartridge part of the seal in the seal cover

Run this procedureArrow right

Gate Rotor Roller Bearing Replacement

Check mark

Gate Rotor Roller Bearing Removal

Check mark

Refer to section REMOVAL (All VSG)

Check mark

Remove the snap ring (131) retaining the roller bearing in the bearing housing

Check mark

Remove the roller bearing (125) from the bearing housing (112)

Check mark

Use a bearing puller to remove the roller bearing race (125) from the gate rotor support (110)

Check mark

Gate Rotor Roller Bearing Installation

Check mark

Match part numbers on the inner race to the outer race and press the bearing race onto the gate rotor support

Check mark

Install the outer bearing into the bearing housing ensuring numbers match the inner race

Check mark

Install the snap ring retainer in the housing with the bevel facing away from the roller bearing

Run this procedureArrow right

Bearing Check

Check mark

Safety Precautions

Check mark

Ensure the unit is shut down and de-pressurized before starting the procedure.

Check mark

Main Rotor Bearing Float Check

Check mark

Remove the coupling guard and center member from the coupling.

Check mark

Attach a dial indicator to the compressor frame and zero the indicator.

Check mark

Measure the movement by pushing the coupling towards the motor.

Check mark

Re-zero the indicator and measure the movement by pushing the input shaft towards the compressor.

Check mark

Add both readings to determine the total bearing float.

Check mark

Is the total bearing float within 0.003 inches?

Run this procedureArrow right

Command Shaft Assembly Maintenance

Check mark

Command Shaft Assembly Removal

Check mark

Prepare the compressor for servicing.

Check mark

Follow the appropriate instructions to remove control actuator.

Check mark

Remove components securing mounting plate to manifold

Check mark

Remove the command shaft and mounting plate from the compressor.

Check mark

Command Shaft Assembly Installation

Check mark

Install the command shaft assembly with a new o-ring on the manifold.

Check mark

Ensure the command shaft tongue is engaged in the cross shaft slot.

Check mark

Rotate the bearing housing so the vent holes point down.

Run this procedureArrow right

Slide Valve Gear And Rack Inspection

Check mark

Disassembly

Check mark

Remove the discharge manifold

Check mark

Inspection

Check mark

Check rack to rack clamp and rack clamp spacer clearance on all four slide valves

Check mark

Check torque of socket head cap screws

Check mark

Is there excessive movement between the slide valve rack shafts and the rack?

Check mark

Ensure jam nuts on the end of the slide valve rack shaft are tight

Check mark

Check for loose or broken roll pins in gears

Check mark

Is there any excessive wear on moving parts?

Run this procedureArrow right
