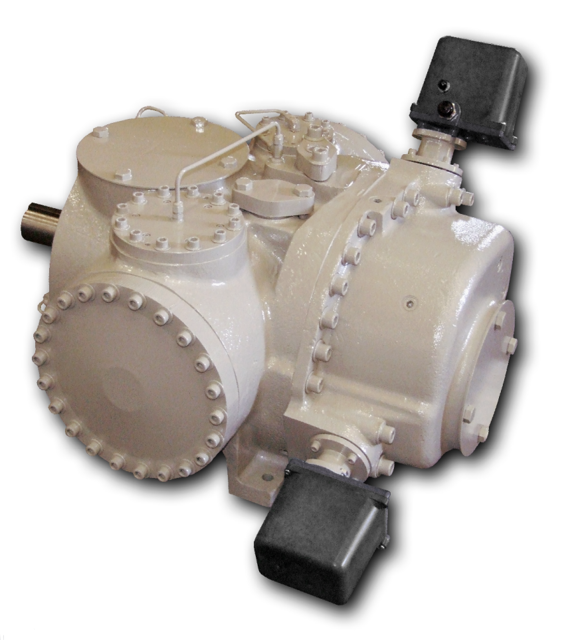

Vilter Manufacturing Compressor VSG 361

Need answers fast?
Explore the manual using AI.

Vilter Manufacturing Compressor VSG 361
Vilter Manufacturing Compressor VSG 361

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Vilter Manufacturing Compressor VSG 361

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Vilter Manufacturing Compressor VSG 361

Vilter Manufacturing Compressor VSG 361

Create an account to install this asset package.

Maintenance Plans for Vilter Manufacturing Compressor Model VSG 361

Integrate maintenance plans directly into your work orders in MaintainX.

Gate Rotor Roller Bearing Replacement

Check mark

Gate Rotor Roller Bearing Removal

Check mark

Refer to section REMOVAL (All VSG) for removal of components

Check mark

Remove the snap ring (131) retaining the roller bearing in the bearing housing

Check mark

Remove the roller bearing (125) from the bearing housing (112)

Check mark

Use a bearing puller to remove the roller bearing race (125) from the gate rotor support (110)

Check mark

Gate Rotor Roller Bearing Installation

Check mark

Match part numbers on the inner race to the outer race and press the bearing race onto the gate rotor support

Check mark

Install the outer bearing into the bearing housing ensuring numbers match the inner race

Check mark

Install the snap ring retainer in the housing with the bevel facing away from the roller bearing

Run this procedureArrow right

Compressor Shaft Seal Replacement

Check mark

Compressor Shaft Seal Removal

Check mark

Prepare the compressor for servicing as outlined in section REMOVAL (All VSG).

Check mark

Remove bolts holding the shaft seal cover and use jacking holes to assist in removing the cover.

Check mark

Remove the rotating portion of the shaft seal.

Check mark

Remove oil seal from cover.

Check mark

Remove the stationary portion of the shaft seal using a brass drift and hammer.

Check mark

Compressor Seal Installation

Check mark

Install new oil seal in cover.

Check mark

Install the carbon cartridge part of the seal in the seal cover, ensuring proper alignment and lubrication.

Run this procedureArrow right

Gate Rotor Thrust Bearing Replacement

Check mark

Gate Rotor Thrust Bearing Removal

Check mark

Remove gate rotor bearing housing

Check mark

Removal of Thrust Bearings on VSG Units

Check mark

Remove bolts from the clamping ring

Check mark

Remove thrust bearing clamping ring

Check mark

Remove thrust bearings from housing

Check mark

Removal of Thrust Bearings on VSSG Units

Check mark

Remove retaining ring from gate rotor support

Check mark

Remove bearings from support

Run this procedureArrow right

Command Shaft Assembly Maintenance

Check mark

Command Shaft Assembly Removal

Check mark

Prepare the compressor for servicing.

Check mark

Follow the appropriate instructions to remove control actuator.

Check mark

Remove components securing mounting plate to manifold

Check mark

Remove the command shaft and mounting plate from the compressor.

Check mark

Command Shaft Assembly Installation

Check mark

Install the command shaft assembly with a new o-ring (446) on the manifold.

Check mark

Ensure the command shaft tongue is engaged in the cross shaft slot.

Check mark

Rotate the bearing housing so the vent holes point down.

Run this procedureArrow right

Gate Rotor Blade Replacement

Check mark

Gate Rotor Blade Removal

Check mark

Remove the gate rotor assembly

Check mark

Remove the snap ring and washer from the gate rotor assembly

Check mark

Lift gate rotor blade assembly off the gate rotor support

Check mark

Check damper pin and bushing for excessive wear

Check mark

Replace damper pin and bushing if necessary

Check mark

Gate Rotor Blade Installation

Check mark

Install damper pin bushing in gate rotor blade from the back side of the blade

Check mark

Ensure the bushing is fully seated
