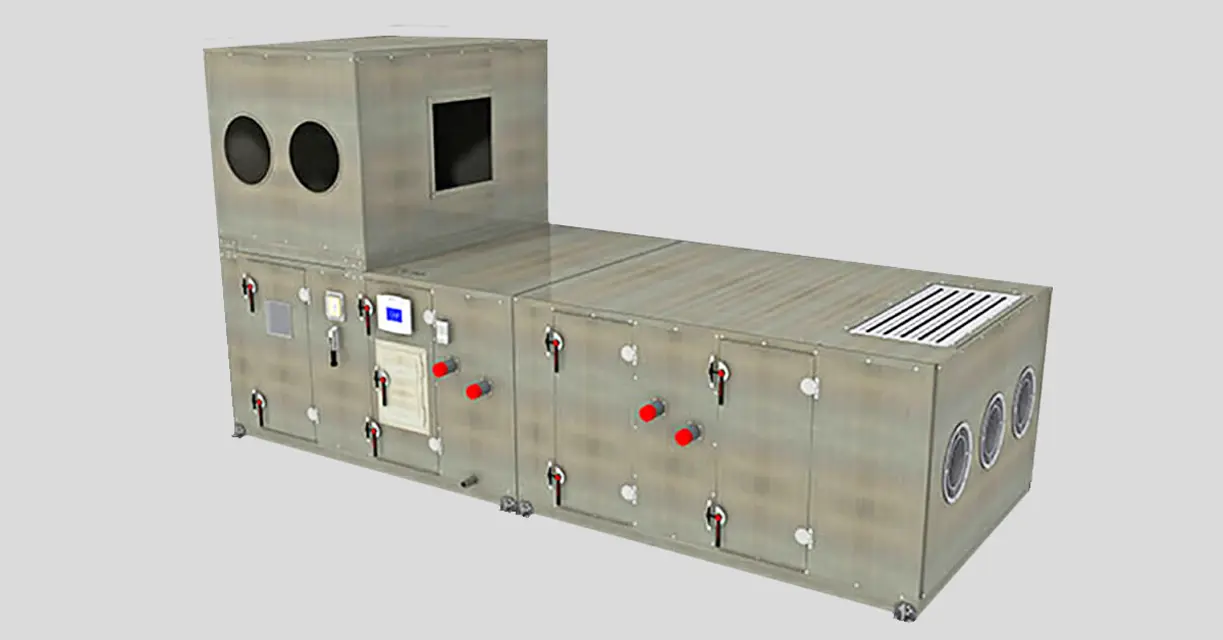

Trane Modular Air Handler M-Series TEM6A0C48

Warning: Disconnect all electrical power to the unit before starting

Dirty filters and block-offs removed

New bag filters slid into the filter rack

Note: The pleats should be in the vertical position

Optional pre-filters replaced on the appropriate filter rack

Fixed block-offs slid into the filter track before the adjustable block-off

Note: The adjustable block-off should always be installed last, next to the access door

Type K cooling coils have removable headers for cleaning every three to six months

Note: Apply washers under the bolt heads. Bolts should be evenly tightened to 50 foot-pounds of torque, beginning in the center and working toward the outside

Enter the torque applied to the bolts

Sign off on the cooling coils cleaning

CAUTION: Microbial Growth! Wet interior unit insulation can become an amplification site for microbial growth (mold), which may cause odors and damage to the equipment and building materials. If there is evidence of microbial growth on the interior insulation, the insulation should be removed and replaced prior to operating the system.

WARNING: Hazardous Voltage! Disconnect all electric power, including remote disconnects before servicing. Follow proper lockout/ tagout procedures to ensure the power can not be inadvertently energized. Failure to disconnect power before servicing could result in death or serious injury.

WARNING: Hazardous Chemicals! Coil cleaning agents can be either acidic or highly alkaline. Handle chemical carefully. Proper handling should include goggles or face shield, chemical resistant gloves, boots, apron or suit as required. For personal safety refer to the cleaning agent manufacturer's Materials Safety Data Sheet and follow all recommended safe handling practices. Failure to follow all safety instructions could result in death or serious injury.

Internal insulation clean and dry?

Evidence of contamination in either the wet or dry sections?

Microbial growth on a non-porous insulating surface observed?

Contaminated material contacted other areas of the unit or building?

Porous insulating surface clean?

Sign off on the internal insulation maintenance

Check fan bearing grease line connections. Lines should be tight to the bearings

Check bearing and motor bracket bolt torque and bearing setscrew torque

Align fan and motor sheaves. Tighten sheave set screws to the proper torque

Inspect coils for dirt build-up

Inspect coils for dirt build-up

Disconnect all electrical power to the unit

Use a soft brush to remove loose debris from both sides of the coil

Install a block-off to prevent spray from going through the coil and into a dry section of the unit and/or system ductwork

Mix a high-quality coil cleaning detergent with water according to the manufacturer’s instructions

Place the mixed solution in a garden pump-up sprayer or high-pressure sprayer

Maintain minimum nozzle spray angle of 15 degrees

Spray perpendicular to the coil face

Keep the nozzle at least 6 inches from the coil
