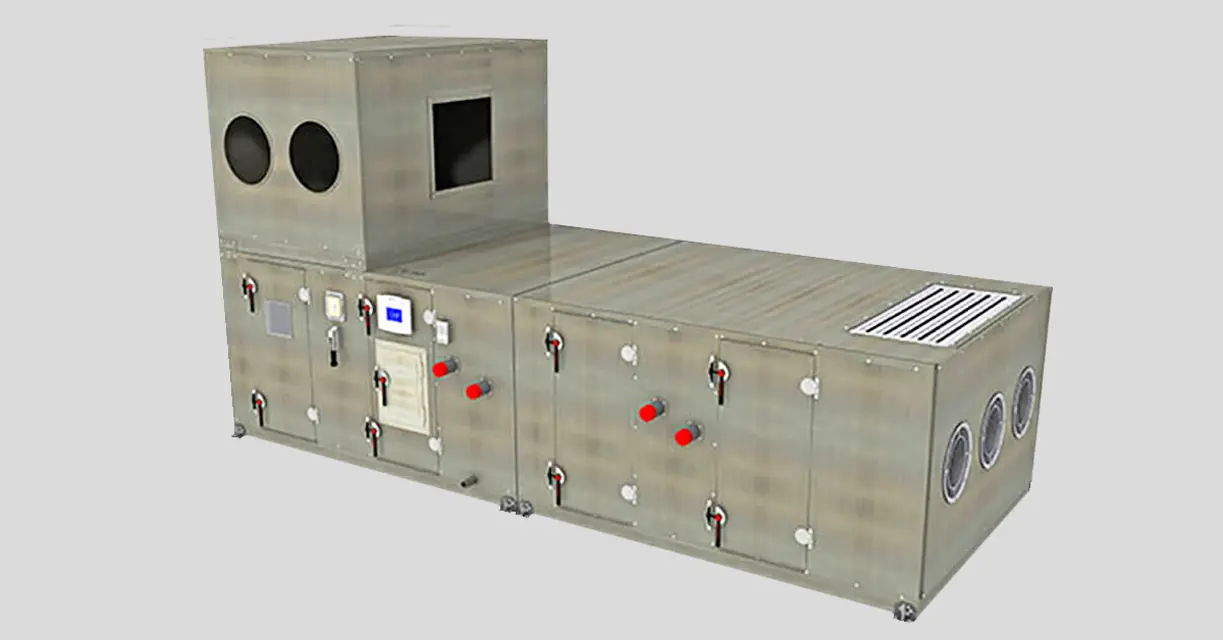

Trane Trane Modular Air Handler M-Series TEM6A0C42H M-Series TEM6A0C42H

WARNING: Hazardous Service Procedures! The maintenance and troubleshooting procedures recommended in this section of the manual could result in exposure to electrical, mechanical or other potential safety hazards. Always refer to the safety warnings provided throughout this manual concerning these procedures.

WARNING: Rotating Components! Disconnect all electric power, including remote disconnects before servicing. Follow proper lockout/ tagout procedures to ensure the power can not be inadvertently energized. Secure drive sheaves to ensure rotor cannot freewheel.

Clean or replace air filters if clogged or dirty

Coat permanent filters with oil after cleaning

Change bag filters when pressure drop is 1 in. wg

Relubricate fan bearings if necessary

Check and adjust fan belt tension

Sign off on the air handler maintenance

Inspect the unit casing for corrosion. If damage is found, clean and repaint the surface with a rust-resistant primer and vinyl chlorinated lacquer

Clean the fan wheels and fan shaft

Check damper linkages, set screws, and blade adjustment. Clean, but do not lubricate, the nylon damper rod bushings

Inspect electrical components and insulation

Rotate the fan wheel and check for obstructions in the fan housing. The wheel should not rub on the fan housing. Adjust the center if necessary and tighten wheel set screws to the proper torque

Lubricate motor bearings in accordance with motor manufacturer’s recommendations

Disconnect all electrical power to the unit

Dirty filters and block-offs removed from their installed position

New bag filters slid into the filter rack, pushed tightly against the unit

NOTE: The pleats should be in the vertical position

Optional pre-filters replaced on the appropriate filter rack

Fixed block-offs slid into the filter track before the adjustable block-off

NOTE: The adjustable block-off should always be installed last, next to the access door

Door can be closed without compressing the filter

Inspect and clean drain pans every three to six months

WARNING: No Step Surface! Do not walk on the sheet metal drain pan. Walking on the drain pan could cause the supporting metal to collapse. Failure of the drain pan could result in death or serious injury

The condensate drain pan and drain line must be checked to assure the condensate drains as designed. This inspection should occur a minimum of every six months or more often as dictated by operating experience

If evidence of standing water or condensate overflow exists, identify and remedy the cause immediately

Disconnect all electrical power to the unit

Wearing the appropriate personal protective equipment, remove any standing water

Scrape solid matter off of the drain pan

Vacuum the drain pan with a vacuum device that uses high-efficiency particulate arrestance (HEPA) filters with a minimum efficiency of 99.97 percent at 0.3 micron particle size

Thoroughly clean any contaminated area(s) with a mild bleach and water solution or an EPA-approved sanitizer specifically designed for HVAC use

Inspect coils for dirt build-up

Disconnect all electrical power to the unit

Use a soft brush to remove loose debris from both sides of the coil

Install a block-off to prevent spray from going through the coil and into a dry section of the unit and/or system ductwork

Mix a high-quality coil cleaning detergent with water according to the manufacturer’s instructions

Place the mixed solution in a garden pump-up sprayer or high-pressure sprayer

Maintain minimum nozzle spray angle of 15 degrees

Spray perpendicular to the coil face

Keep the nozzle at least 6 inches from the coil
