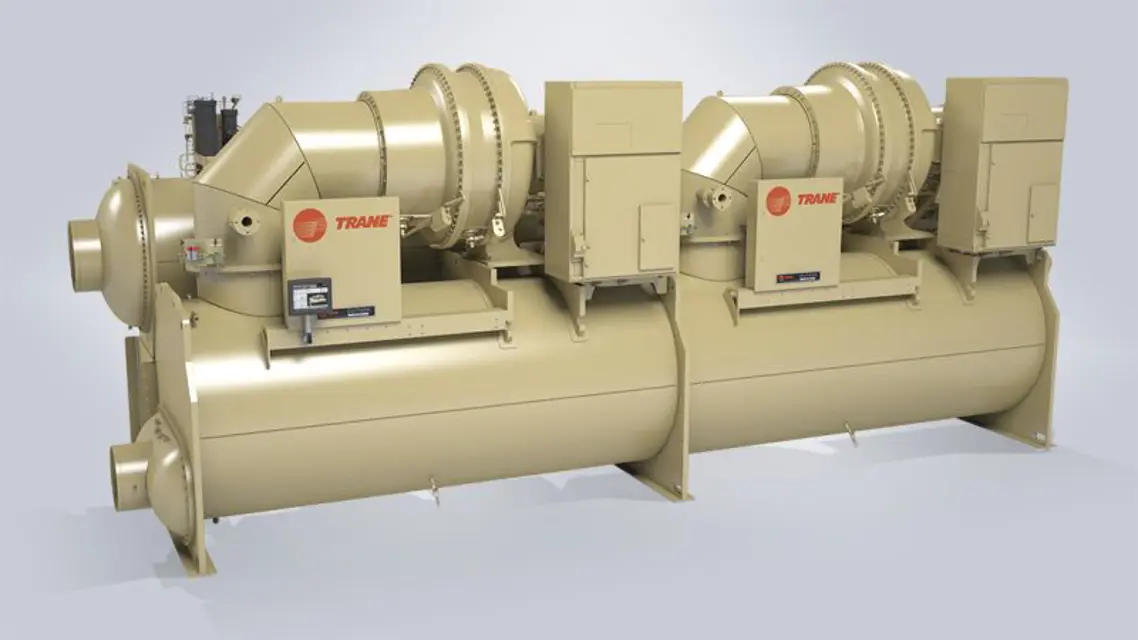

Trane CenTraVac™ Water-Cooled Chiller CVHG - 920-1100 - 892 - 142L / 210L

Shut down the chiller once each year to check the items of Optional Accessories

If applicable, lubricate factory-installed gantries

After the first month of operation, inspect Heresite® or Belzona® coated waterboxes; thereafter, inspect as needed

Inspect and lubricate hinged waterboxes

With water flow sensing option, bleed tubing from waterboxes to transformers

Sign off on the yearly optional accessories maintenance

Lubricate the vane control linkage bearings, ball joints, and pivot points

Lubricate vane operator tang O- rings

Lubricate the oil filter shutoff valve O-rings

Sign off on the chiller lubrication

Check chiller for normal operation

Approximate Evaporator Pressure

Oil Sump Temperature Unit not running

Oil Sump Temperature Unit running

Oil Sump Differential: Oil Pressure

Clean all water strainers in the water piping system

Inspect waterbox coatings within the first 1–3 months to determine a required maintenance schedule for your job site

Inspect waterbox anodes within the first 1–3 months to determine a required maintenance schedule for your job site

Sign off on the chiller maintenance

Warning: Equipment Damage! Failure to follow instructions could result in equipment damage

Do NOT use Teflon-based tape or paste on anode; a small amount of liquid sealant (Loctite® 242 or equivalent) may be applied to prevent leakage when installing an anode, but do not apply so much sealant that it prevents the necessary electrical connection between the anode and the waterbox

As needed after draining the waterbox, use a 2-1/2 in. (63.5 mm) wrench to remove/install Trane-supplied waterbox anodes

Inspection of anodes for wear within the first several months of the anodes being placed into service

If the observed loss of anode material is small, then the interval between subsequent inspections can be lengthened

Replace the anode and/ or shorten the inspection interval if the anode has lost 50 percent or more of its original mass

If anode depletion occurs very quickly, consult a water treatment specialist to determine if the anode material selected is correct for the application

Sign off on the anode replacement
