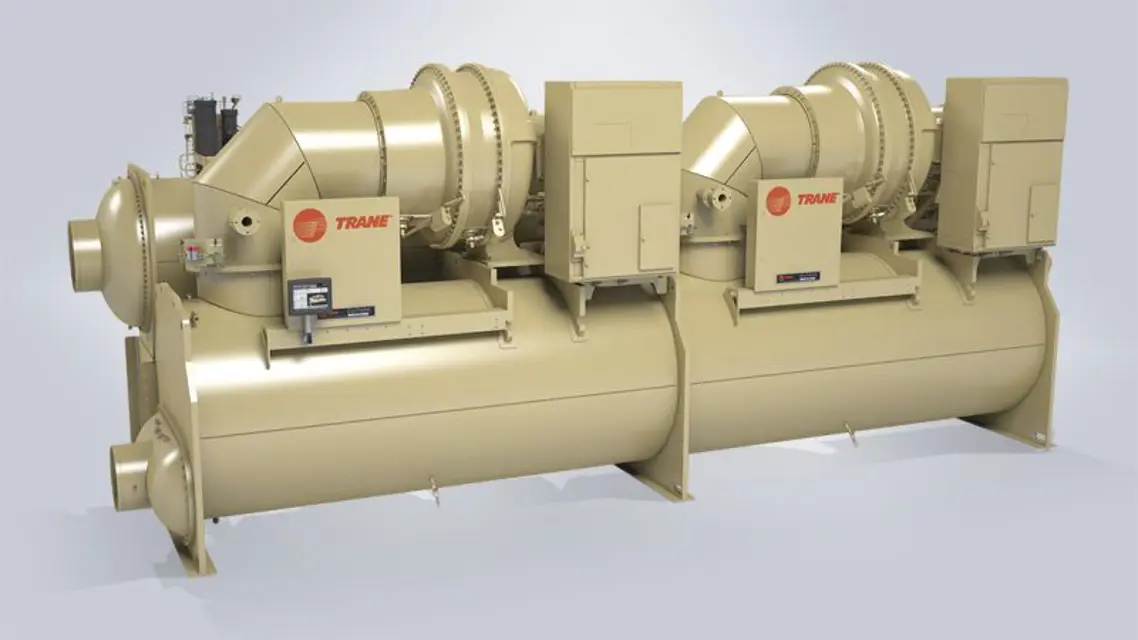

Trane CenTraVac™ Water-Cooled Chiller CVHG - 670-780 - 621 - 080S / 080L

Check inlet guide vanes (IGV) for abnormalities

Sign off on the compressor/motor inspection

Trane recommends that coated waterboxes/tubesheets - regardless of the type of protective coating included - be taken out of service within the first one to three months of operation for inspection.

Any voids or defects identified upon inspection?

If voids or defects are identified, they must be repaired.

Is the water quality known to be highly supportive of corrosion (i.e., sea water, etc.)?

If yes, inspect the coating system at one month.

Is the water quality known to be relatively benign (i.e., normal treated and clean condenser water)?

If yes, inspect the coating system within three months.

Did the initial inspections show no problems?

Only when initial inspections show no problems are present should subsequent maintenance intervals be increased.

Inspect for fouling and scaling in tubes

Check operation of condenser water flow sensing device

Factory recommendation to eddy current test tubes every three years

Sign off on the condenser inspection

Compare the readings with the values provided in the general maintenance

Check the oil level in the chiller oil sump using the two sight glasses provided in the oil sump head. When the unit is operating, the oil level should be visible in the lower sight glass

Review the purge Installation, Operation, and Maintenance manual and follow maintenance and/or inspection items identified

Review overall operation of purge and service as necessary

Sign off on the purge unit inspection
