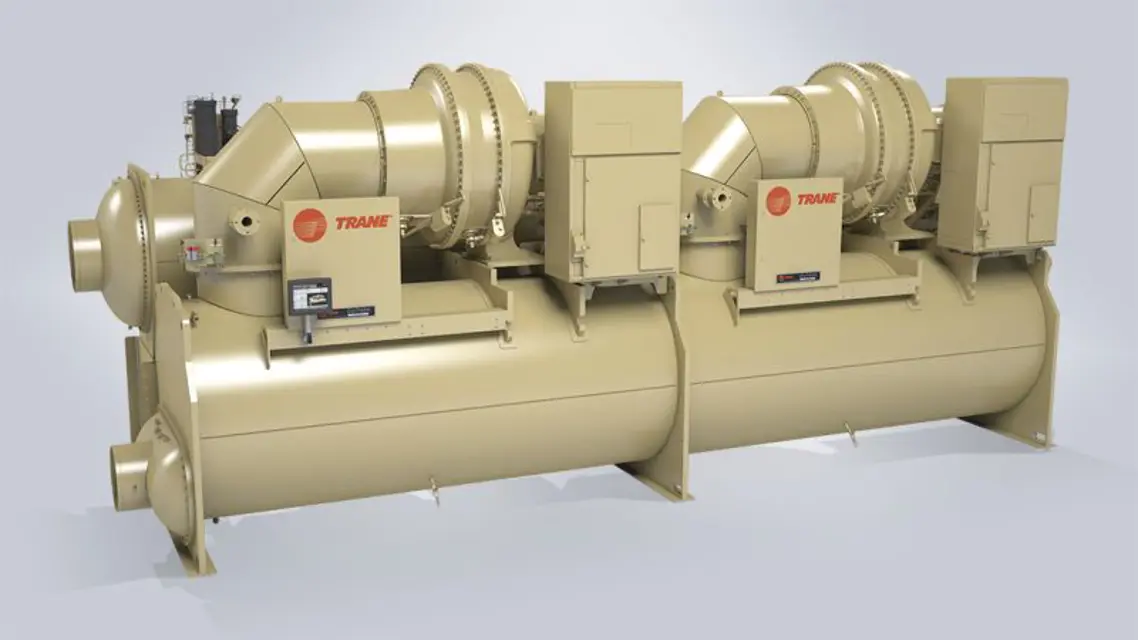

Trane CenTraVac™ Water-Cooled Chiller CVHG - 480-565 - 489 - 050S / 050S

- Shut down the chiller once each year to check the items of Condenser

1. Inspect for fouling and scaling in tubes

2. Check operation of condenser water flow sensing device

3. Factory recommendation to eddy current test tubes every three years;

Operate the tang operators manually and check for any abnormalities

Drain contents of the rupture disk and purge discharge vent-line drip-leg into an evacuated waste container

Is the purge operated excessively?

If yes, repeat the second step more often.

Apply oil to any exposed metal parts to prevent rust

Sign off on the chiller maintenance

Warning: Equipment Damage! Failure to follow instructions could result in equipment damage

Do NOT use Teflon-based tape or paste on anode; a small amount of liquid sealant (Loctite® 242 or equivalent) may be applied to prevent leakage when installing an anode, but do not apply so much sealant that it prevents the necessary electrical connection between the anode and the waterbox

Inspection of anodes for wear within the first several months of the anodes being placed into service

Enter the observed loss of anode material

Anode has lost 50 percent or more of its original mass

If anode depletion occurs very quickly, did you consult a water treatment specialist to determine if the anode material selected is correct for the application

As needed after draining the waterbox, use a 2-1/2 in. (63.5 mm) wrench to remove/install Trane-supplied waterbox anodes

Sign off on the anode replacement

NOTICE: Proper Water Treatment Required! The use of untreated or improperly treated water could result in scaling, erosion, corrosion, algae or slime.

Use the services of a qualified water treatment specialist to determine what water treatment, if any, is required. Trane assumes no responsibility for equipment failures which result from untreated or improperly treated water, or saline or brackish water.

Condenser tube fouling is indicated when the approach temperature (the difference between the condensing refrigerant temperature and the leaving condenser water temperature) is higher than predicted.

If the annual condenser tube inspection indicates that the tubes are fouled, two cleaning methods— mechanical and chemical—can be used to rid the tubes of contaminants.

Use the mechanical cleaning method to remove sludge and loose material from smooth-bore tubes.

To clean other types of tubes including internally- enhanced types, consult a qualified service organization for recommendations.

Round nylon or brass bristled brush worked in and out of each of the condenser water tubes to loosen the sludge?

Condenser water tubes thoroughly flushed with clean water?

Trane recommends that coated waterboxes/tubesheets - regardless of the type of protective coating included - be taken out of service within the first one to three months of operation for inspection.

Any voids or defects identified upon inspection?

If voids or defects are identified, they must be repaired.

Is the water quality known to be highly supportive of corrosion (i.e., sea water, etc.)?

If yes, inspect the coating system at one month.

Is the water quality known to be relatively benign (i.e., normal treated and clean condenser water)?

If yes, inspect the coating system within three months.

Did the initial inspections show no problems?

Only when initial inspections show no problems are present should subsequent maintenance intervals be increased.
