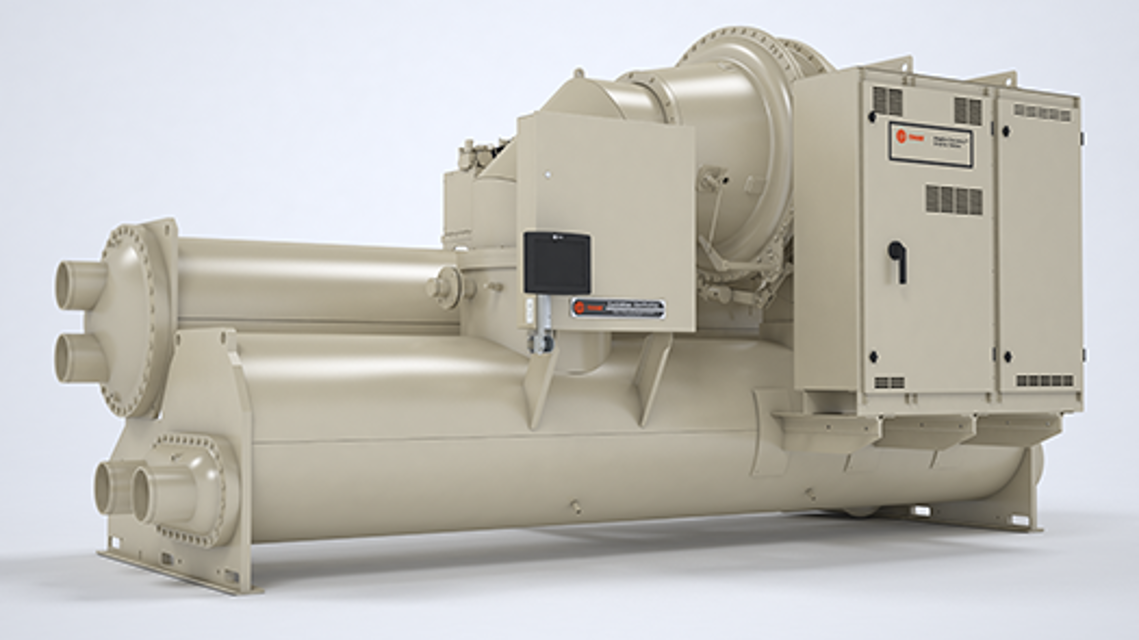

Trane CenTraVac™ Water-Cooled Chiller CVHF - 1470-1720 - 1340 - 142L / 210L

- Operate the tang operators manually and check for any abnormalities

- Drain contents of the rupture disk and purge discharge vent-line drip-leg into an evacuated waste container

- Do this more often if the purge is operated excessively

- Apply oil to any exposed metal parts to prevent rust;

- Shut down the chiller once each year to check the items

4. Inspect motor terminal board

5. Check inlet guide vanes (IGV) for abnormalities;

- Lubricate the gantries annually

1. Use ConocoPhillips Gantries MegaPlex® XD3 (gray in color), LPS® MultiPlex Multi-Purpose (blue in color), or equivalent

- Lubricate the hinges annually

1. Use ConocoPhillips MegaPlex® XD3 (gray in color), LPS® MultiPlex Multi- Purpose (blue in color), or equivalent;

- Shut down the chiller once each year to check the items of Evaporator

1. Inspect for fouling and scaling in tubes

2. Check operation of evaporator water flow sensing device

3. Factory recommendation to eddy current test tubes every three years;

- Lubricate the vane control linkage bearings, ball joints, and pivot points

- Lubricate vane operator tang O- rings

- Lubricate the oil filter shutoff valve O-rings;
