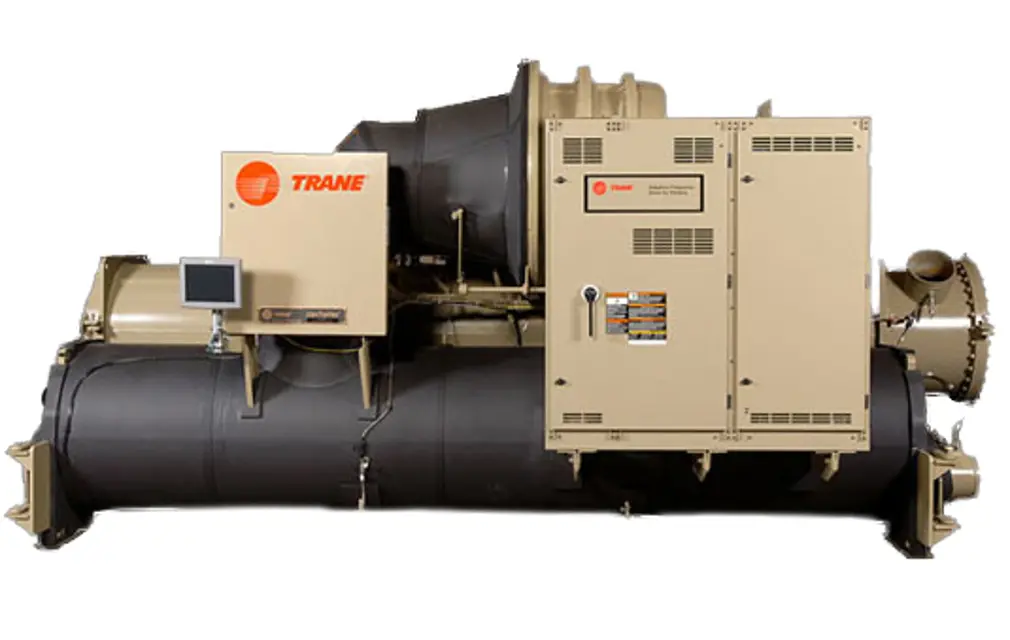

The Trane CenTraVac™ Water-Cooled Chiller CVHE - 230-320 - 289 - 032L is a high-efficiency industrial cooling solution designed for large-scale applications. Known for its reliability and performance, this chiller model offers advanced features to optimize energy use and maintain consistent temperature control.

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Trane CenTraVac™ Water-Cooled Chiller CVHE - 230-320 - 289 - 032L / 032L

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Trane CenTraVac™ Water-Cooled Chiller CVHE - 230-320 - 289 - 032L / 032L

Trane CenTraVac™ Water-Cooled Chiller CVHE - 230-320 - 289 - 032L / 032L

Create an account to install this asset package.

Maintenance Plans for Trane CenTraVac™ Water-Cooled Chiller Model CVHE - 230-320 - 289 - 032L / 032L

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Exterior Parts Maintenance

Check mark

Chiller shut down?

Check mark

Inlet guide vane linkage check

Check mark

Clean and touch-up painted surfaces as needed

Check mark

Repair deteriorated, torn, or missing insulation

Check mark

Sign off on the exterior parts maintenance

Run this procedureArrow right

3 Yearly Tubes Maintenance

Check mark

- Use a non-destructive tube test to inspect the condenser and evaporator tubes

Check mark

1. It may be desirable to perform tube tests on these components at more frequent intervals depending upon chiller application

Check mark

2. This is especially true of critical process equipment

Check mark

3. Ask your Sales account manager for a copy of engineering bulletin (CTV-PRB024*-EN) for clarification of the role of eddy current testing in chiller maintenance by providing information about eddy current technology and heat exchanger tubing;

Run this procedureArrow right

1 Yearly Chiller Maintenance

Check mark

- For R-123 chillers, perform the annual maintenance procedures referred to in Operation and Maintenance Guide: EarthWise Purge System with Tracer AdaptiView Control for Water-Cooled CenTraVac Chillers with R-123 Refrigerant (PRGF- SVX01*-EN). For R-514A chillers, perform the annual maintenance procedures referred to in Operation and Maintenance Guide: Purge System with Tracer AdaptiView Control for Water-Cooled CenTraVac Chillers with R-514A Refrigerant (PRGG-SVX001*-EN)

Check mark

- Use an ice water bath to verify the accuracy of the evaporator refrigerant temperature sensor (4R10). If the sensor is exposed to temperature extremes outside its normal operating range (0°F to 90°F [-17.8°C to 32.2°C]), check its accuracy at six-month intervals

Check mark

- Inspect the condenser tubes for fouling; clean if necessary

Check mark

- Inspect and clean the ifm efector® flow detection sensors. Use Scotch-Brite® or other non-abrasive material to clean scale; do NOT use steel wool, which could cause the probe to rust

Check mark

- Submit a sample of the compressor oil to a Trane- qualified laboratory for comprehensive analysis

Check mark

- Measure the compressor motor winding resistance to ground; a qualified service technician should conduct this check to ensure that the findings are properly interpreted. Contact a qualified service organization to leak-test the chiller; this procedure is especially important if the system requires frequent purging;

Run this procedureArrow right

1 Yearly Purge Unit Inspection

Check mark

- Shut down the chiller once each year to check the items of Purge Unit

Check mark

1. Review the purge Installation, Operation, and Maintenance manual and follow maintenance and/or inspection items identified

Check mark

2. Review purge pump-out data

Check mark

3. Review overall operation of purge and service as necessary;

Run this procedureArrow right

3 Monthly Chiller Maintenance

Check mark

Clean all water strainers in the water piping system

Check mark

Inspect waterbox coatings within the first 1–3 months to determine a required maintenance schedule for your job site

Check mark

Inspect waterbox anodes within the first 1–3 months to determine a required maintenance schedule for your job site

Check mark

Sign off on the chiller maintenance

Run this procedureArrow right

Parts for Trane CenTraVac™ Water-Cooled Chiller CVHE - 230-320 - 289 - 032L / 032L

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Evap Lifting Fixture, CTV Unit

BAR00400

Safety Hoist Ring 3/4-10, CTV Unit

RNG01884

Safety Hoist Ring 1/2-13, CTV Unit

RNG01885

Evap Lifting Fixture, CTV Unit

BAR00400

Safety Hoist Ring 3/4-10, CTV Unit

RNG01884

Safety Hoist Ring 1/2-13, CTV Unit

RNG01885

Evap Lifting Fixture, CTV Unit

BAR00400

Safety Hoist Ring 3/4-10, CTV Unit

RNG01884

Safety Hoist Ring 1/2-13, CTV Unit

RNG01885
