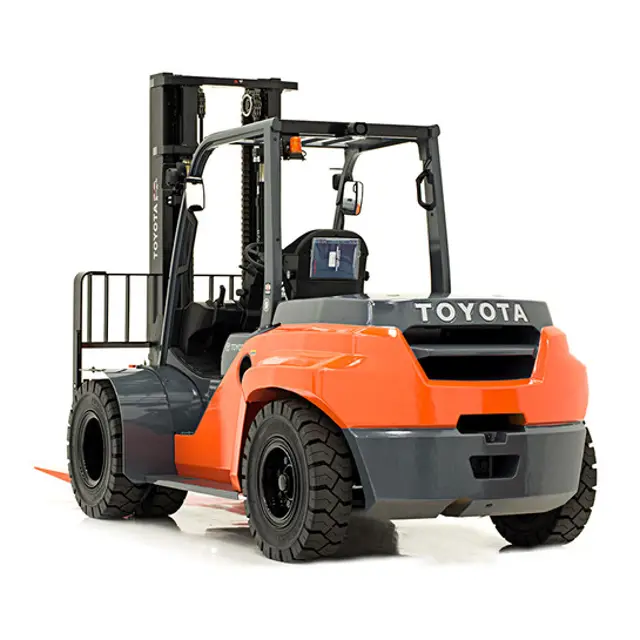

Toyota Forklift 8FD60U

Inspect cracks, damage and deformation of housing

Inspect cracks, damage and deformation of beam

Measure looseness of axle beam in vehicle longitudinal direction

Inspect damage of power steering hose

Inspect knuckle for cracks and deformation

Inspect cracks at fork root and welded part while forklift is new

Inspect wear and damage of mast support bushing

Inspect wear and damage of roller pins

Measure relief pressure in oil control valve

Sign off on the 2000 Hours / 12 Months Maintenance

Inspect proper starting and abnormal noise of the engine

Measure rotating condition at idling

Measure rotating condition during acceleration

Inspect engine ancillary drive belt tension, looseness and damage

Inspect clogging and damage in PCV valve and piping

Inspect lub system for Oil leak

Inspect oil level in lub system

Engine coolant for Super LLC replaced

Enter the current hours of SAS swing lock cylinder

SAS swing lock cylinder replaced after 10000 hours

Enter the current hours of 1KD Timing belt

1KD Timing belt replaced after 4000 hours

Measure tire inflation pressure of the wheels

Inspect tire cuts, damage and uneven wearing of the wheels

Retighten loose rim and hub nuts

Inspect metal chips, pebbles, and other foreign matter

Inspect rim, side bearing, and disc wheel damage

Inspect abnormal sound and looseness of front wheel bearing

Inspect abnormal sound and looseness of rear wheel bearing

Measure Looseness of axle beam in vehicle longitudinal direction
