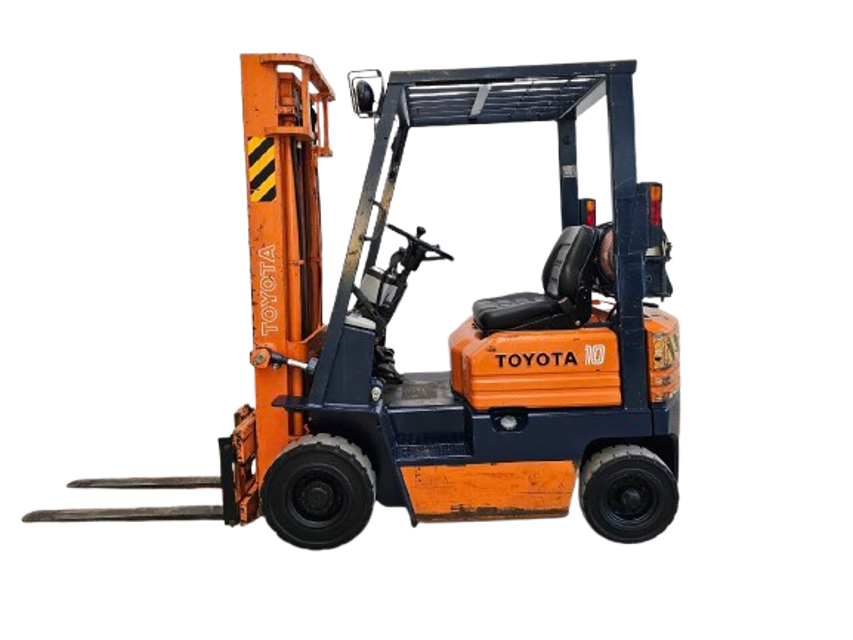

Toyota Forklift 40- 5FG10

- Inspect function, wear, damage, leak and mounting looseness in Master cylinder and wheel cylinder

- Inspect Wear of shoe sliding portion and lining

- Inspect Shoe operating condition

- Measure Return spring fatigue

- Inspect Automatic adjuster function

- Inspect Backing plate for deformation, cracks and damage

- Retighten Backing plate loose mounting;

Measure tire inflation pressure of the wheels

Inspect for tire cuts, damage, and uneven wearing

Tighten for loose rim and hub nuts

Inspect for metal chips, pebbles, or foreign matter trapped in tire grooves

Inspect rim, side bearing, and disc wheel for damage

Inspect for abnormal sound and looseness in the front wheel bearing

Inspect for abnormal sound and looseness in the rear wheel bearing

Measure looseness of axle beam in vehicle longitudinal direction while forklift is new

Measure play and reserve in the brake pedal

Inspect the braking effect of the brake pedal

Inspect the operating force of the parking brake

Inspect the braking effect of the parking brake

Inspect for looseness or damage in the parking brake rod and cable

Inspect for leaks, damage, and mounting condition of the brake pipe

Inspect for leaks and fluid level in the reservoir tank

Measure clearance between drum and lining

Sign off on the braking system maintenance

Measure battery fluid specific gravity

Inspect open-circuit in open plug

Inspect open-circuit in intake heater

Sign off on the electric system maintenance
