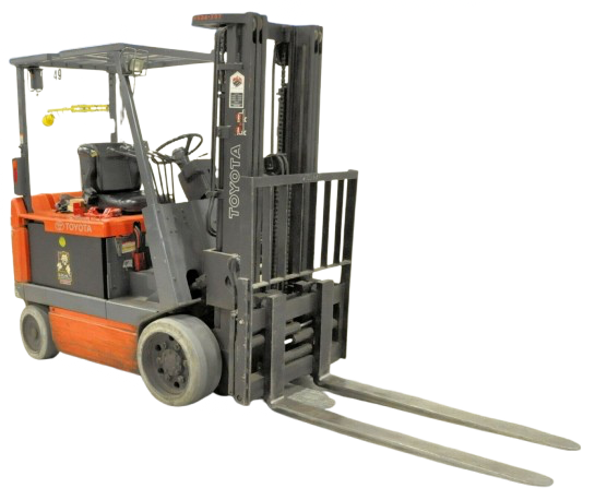

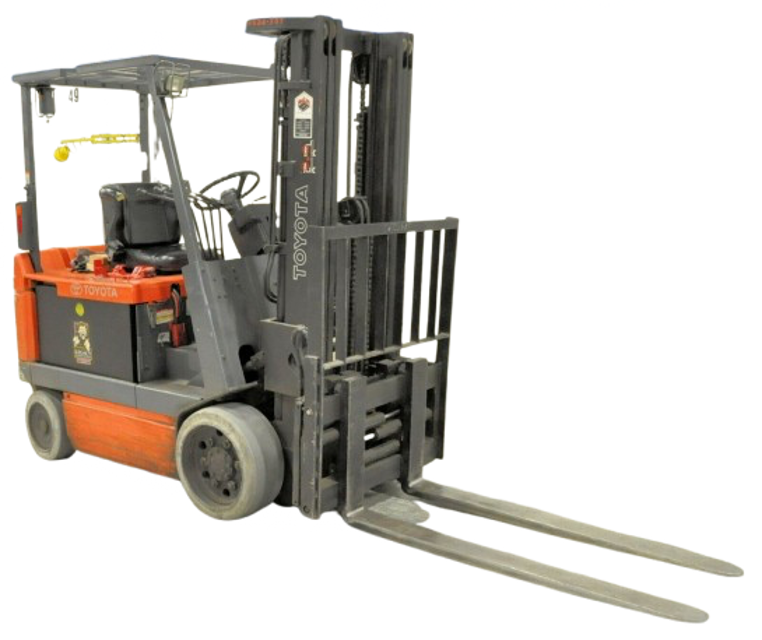

Toyota Forklift 30-5FBCU30
Need answers fast?
Explore the manual using AI.
The Toyota Forklift 30-5FBCU30 is a reliable industrial asset designed for efficient material handling. Known for its durability and performance, this forklift model is ideal for various warehouse and construction applications, ensuring optimal productivity and safety in operations.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 30-5FBCU30
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift 30-5FBCU30
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 30-5FBCU30
Integrate maintenance plans directly into your work orders in MaintainX.
170 Hour / 1 Month Maintenance
Inspect head guard cracks at welded portion
Inspect head guard deformation and damage
Retighten loosening of mounting in back-rest
Inspect back-rest for deformation, crack and damage
Inspect function and mounting condition of lighting system
Inspect function and mounting condition of horn
Inspect function and mounting condition of direction indicator
Inspect function and mounting condition of back up buzzer
Inspect instruments functions
2000 Hour / 12 Month Braking System Maintenance
Inspect parking brake for ratchet wear and damage
Inspect function, wear, damage, leak and mounting looseness in Master cylinder and wheel cylinder
Inspect wear of shoe sliding portion and lining
Inspect drum wear and damage
Inspect shoe operating condition
Inspect anchor pin rusting
Measure return spring fatigue
Inspect automatic adjuster function
Inspect backing plate for deformation, cracks and damage
170 Hour / 1 Month Power Train System Inspection
Inspect differential for oil leakage
Inspect oil level in differential
Inspect transmission for oil leakage
Inspect oil level in transmission
2000 Hour / 12 Month Replacement
Differential oil replaced
Transmission oil replaced
Wheel bearing grease replaced
Master cylinder rubber parts replaced
Wheel cylinder rubber parts replaced
Sign off on the replacements
500 Hour / 3 Month Electrical System Inspection
Motor Insulation resistance
Battery Insulation resistance
Operating voltage of the charger
Unlock efficiency
