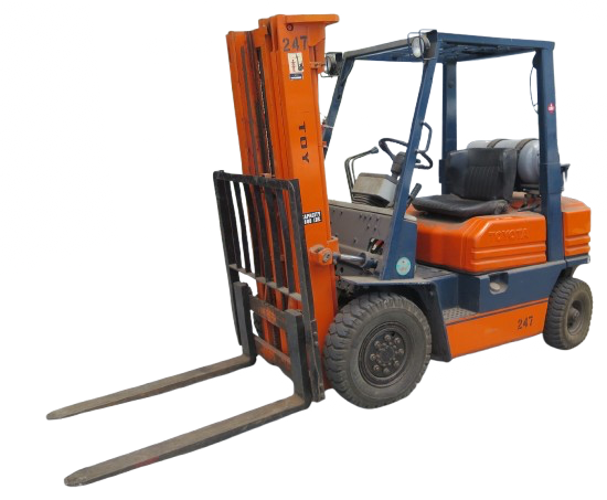

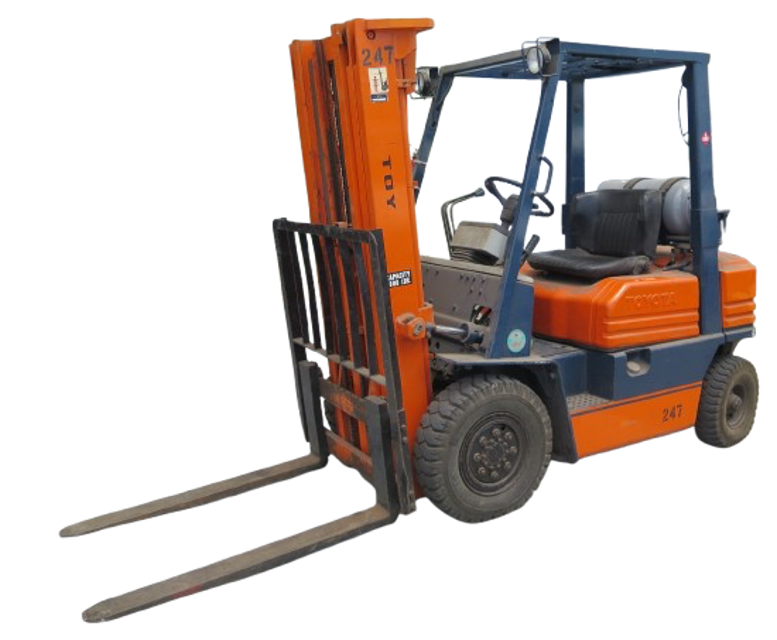

Toyota Forklfit 40- 5FG20

Inspect loosening and damage of cylinder mounting

Inspect deformation and damage of rod, rod screw and rod end

Measure natural drop and natural forward tilt

Inspect for oil leaks and damage in the cylinder

Inspect for wear and damage of the pin and cylinder bearing

Inspect for oil leaks and abnormal sound from the oil pump

Inspect for cracks on the distributor cap

Inspect for spark plug burning and measure the gap

Inspect for burning on the distributor side terminal

Inspect for wear and damage on the distributor cap center piece

Inspect pinion gear meshing status

Inspect wiring harness for damage

- Measure Valve clearance (IDZ-II·2Z)

- Measure main body compression

- Retighten cylinder head bolt loosening

- Measure injection nozzle injection pressure and spray status

- Inspect radiator rubber mount;

- Replace Power Steering Rubbers Parts

- Replace Torque Converter Rubber Hoses

- Replace Chains at every 3 years;

Inspect linkage wear and mounting condition of the rods, links and arm

Inspect damage of power steering hose

Inspect cracks and deformation in knuckle

Measure wheel alignment in steering shaft

Measure steering shaft left and right turning angle

Sign off on the steering system inspection
