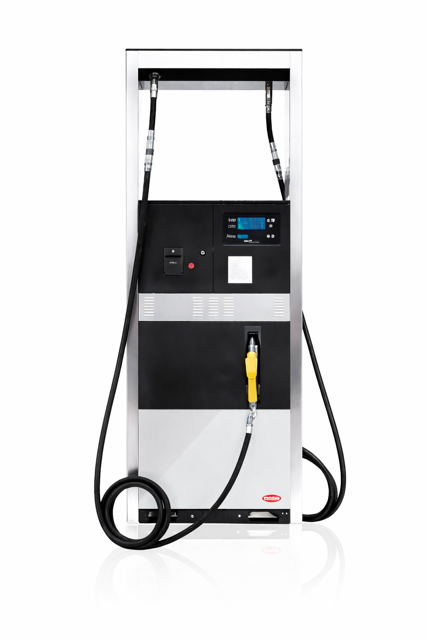

TOKHEIM Fuel Dispenser THN3222B2i
Create an account to install this asset package.
Maintenance Plans for TOKHEIM Fuel Dispenser Model THN3222B2i
Integrate maintenance plans directly into your work orders in MaintainX.
Hydraulic Pump Replacement
Preparation
Ensure all necessary tools and replacement parts are available
Ensure the dispenser is isolated and all power is turned off
Ensure the emergency trip valve is turned off
Cordon off the dispenser under repair
Wear appropriate Personal Protective Clothing
Refer to section 3 before starting the maintenance procedure
Accessing the Hydraulic Area
Locate the key into the hydraulic access panel, push and rotate it 90 degrees counter-clockwise
EPZ Pump Bypass Valve Replacement
Preparation
Ensure all necessary tools and replacement parts are available
Ensure the dispenser is isolated and all power is turned off
Ensure the emergency trip valve is turned off
Cordon off the dispenser under repair
Wear appropriate Personal Protective Clothing as recommended in Section 1.5.5
Access Hydraulic Area
Refer to section 3 before starting the maintenance procedure
Locate the key into the hydraulic access panel, push and rotate it 90 degrees counter-clockwise
Common Latch Nozzle Replacement
Preparation
Ensure all necessary tools and replacement parts are available
Ensure the dispenser is isolated and all power is turned off
Ensure the emergency trip valve is turned off
Cordon off the dispenser under repair
Wear appropriate Personal Protective Clothing as recommended in Section 1.5.5
Nozzle Removal
Pick off the broken nozzle ensuring both the power of dispenser and power of pump are off
Turn on the nozzle and drain fuel into a container
Motor Replacement
Preparation
Ensure all necessary tools and replacement parts are available
Ensure the dispenser is isolated and all power is turned off
Ensure the emergency trip valve is turned off
Cordon off the dispenser under repair
Wear appropriate Personal Protective Clothing as recommended in Section 1.5.5
Accessing the Hydraulic Area
Locate the key into the hydraulic access panel, push and rotate it 90 degrees counter-clockwise
Open another lock in the same way
Hose Replacement
Preparation
Ensure all necessary tools and replacement parts are available
Ensure the dispenser is isolated and all power is turned off
Ensure the emergency trip valve is turned off
Cordon off the dispenser under repair
Wear appropriate Personal Protective Clothing as recommended in Section 1.5.5
Safety and Identification
Refer to section 3 before starting the maintenance procedure
Identify the relevant hose to be replaced
