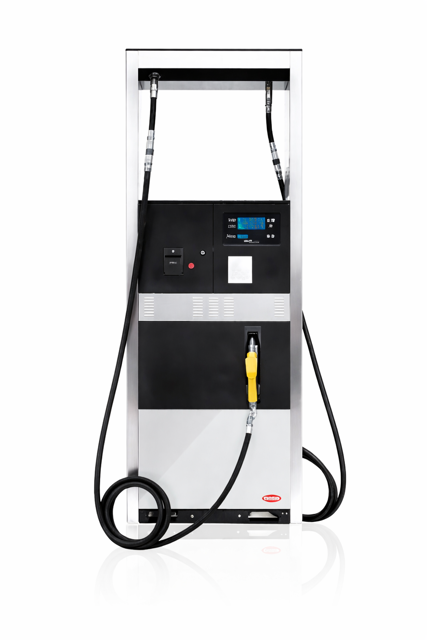

TOKHEIM Fuel Dispenser THCN3222A2i
Create an account to install this asset package.
Maintenance Plans for TOKHEIM Fuel Dispenser Model THCN3222A2i
Integrate maintenance plans directly into your work orders in MaintainX.
Air-Separator Device V-Belt Replacement
Preparation
Ensure all necessary tools and replacement parts are available
Ensure the dispenser is isolated and all power is turned off
Ensure the emergency trip valve is turned off
Cordon off the dispenser under repair
Wear appropriate Personal Protective Clothing as recommended in Section 1.5.5
Safety Compliance
Act in accordance with general safety rules and regulations when working on or near a dispenser
V-Belt Replacement
Hydraulic Pump Replacement
Preparation
Ensure all necessary tools and replacement parts are available
Ensure the dispenser is isolated and all power is turned off
Ensure the emergency trip valve is turned off
Cordon off the dispenser under repair
Wear appropriate Personal Protective Clothing
Refer to section 3 before starting the maintenance procedure
Access Hydraulic Area
Locate the key into the hydraulic access panel, push and rotate it 90 degrees counter-clockwise
Hydraulic Pump Filter Replacement
Preparation
Ensure all necessary tools and replacement parts are available
Ensure the dispenser is isolated and all power is turned off
Ensure the emergency trip valve is turned off
Cordon off the dispenser under repair
Wear appropriate Personal Protective Clothing
Refer to section 3 for access from side B of the dispenser
Access Hydraulic Area
Consult section 3 for instructions
Motor Replacement
Preparation
Ensure all necessary tools and replacement parts are available
Ensure the dispenser is isolated and all power is turned off
Ensure the emergency trip valve is turned off
Cordon off the dispenser under repair
Wear appropriate Personal Protective Clothing as recommended in Section 1.5.5
Accessing the Motor
Refer to Section 3 before starting the maintenance procedure
Follow instructions in section 3.4 to gain access to the hydraulic area
Air-Elimination Device Vacuum Pump Replacement
Preparation
Ensure all necessary tools and replacement parts are available
Ensure the dispenser is isolated and all power is turned off
Ensure the emergency trip valve is turned off
Cordon off the dispenser under repair
Wear appropriate Personal Protective Clothing as recommended in Section 1.5.5
Safety Compliance
Act in accordance with general safety rules and regulations when working on or near a dispenser
Pump Repair - Side A
Unlock efficiency
with MaintainX CoPilot
MaintainX CoPilot is your expert colleague, on call 24/7, helping your team find the answers they need to keep equipment running.
