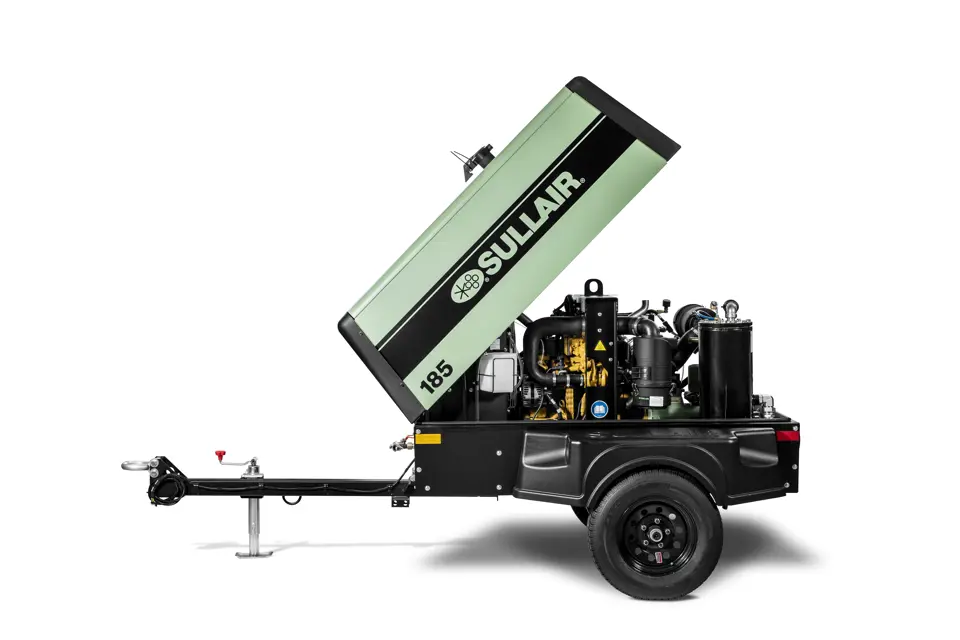

Sullair Portable Air Compressor 185 CA

Warning: Ensure the compressor is off and all pressure is relieved before starting the procedure

Compressor run for 5-10 minutes to warm the fluid

Compressor shut down and all internal pressure relieved

Fluid sump drained by removing the plug or opening the valve at the bottom of the sump tank

Compressor fluid changed and fluid filter element replaced

Amount of fluid filled in the sump

Sign off on the fluid filter element replacement

Clean the return line orifice and check the strainer

Change the compressor fluid filter

Check the Engine Operator’s Manual for service requirements

Check the fuel filter for water

Confirm that the receiver tank cover bolts are tightened to 60 lbf ft (81 N m)

Warning: Proper lubrication of the portable compressor's bearing axle is critical to its proper function and reduction of wear on this part.

Use a wheel bearing grease that conforms to MILSPEC MIL-G-10924 or a high temperature one such as lithium complex NLGI consistency #2

Axles with the E-Z Lube feature can be periodically lubricated without removing the hubs from the axle?

Remove the rubber cap from the grease cap's end

Using a full charged grease gun, place the gun onto the grease zerk located on the end of the spindle. Make sure the nozzle is fully engaged on the fitting

Pump grease into the zerk. The old grease will be displaced and flow out of the cap around the grease gun nozzle

When the new grease starts flowing out of the cap, disengage the gun and wipe off any excess off the cap; and replace the rubber plug

Sign off on the compressor bearing lubrication

Old element removed with a strap wrench

Light coating of fluid applied to the new gasket

New element hand tightened until the new gasket is seated

Element tightened by hand an additional 1⁄2 to 3⁄4 turn

Compressor restarted and checked for leaks

Sign off on the fluid replacement

Clean the radiator and cooler exterior surfaces every 100 hours

Check the Engine Operator’s Manual for service requirements every 100 hours

Clean the radiator and cooler exterior surfaces

Check the Engine Operator's Manual for service requirements

Change the engine oil and filter

Clean or replace the return line strainer

Change the air filter primary elements

Change the compressor fluid filter
