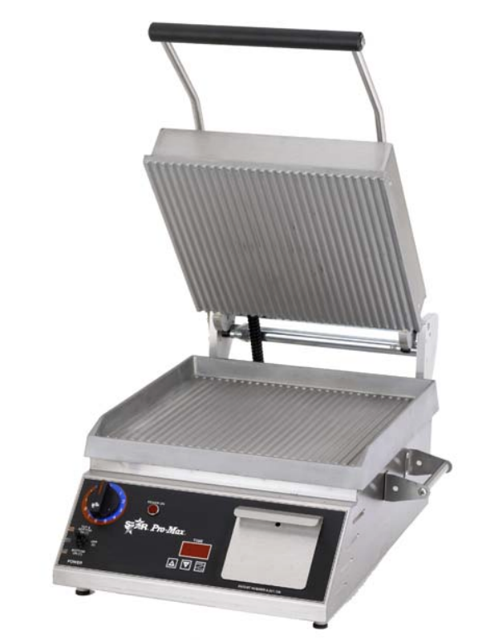

Star Two-Sided Grills GR10

Need answers fast?
Explore the manual using AI.

Star Two-Sided Grills GR10
Star Two-Sided Grills GR10

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Star Two-Sided Grills GR10

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Star Two-Sided Grills GR10

Star Two-Sided Grills GR10

Create an account to install this asset package.

Maintenance Plans for Star Two-Sided Grills Model GR10

Integrate maintenance plans directly into your work orders in MaintainX.

Carbon Cleaning

Check mark

Preparation

Check mark

Ensure power is turned off and unit is unplugged

Check mark

Verify the unit is not too hot before starting

Check mark

Cleaning Process

Check mark

Apply carbon removal agent according to instructions

Check mark

Use only cleaners safe for aluminum and iron surfaces

Check mark

Wipe with clean sponge or towel until unit is clean

Check mark

Remove and clean grease catcher drawer with mild detergent and water

Check mark

Safety Precautions

Run this procedureArrow right

1 Monthly Two-Sided Grills Service

Check mark

Monthly Lubrication/Inspection

Check mark

Apply two drops of non-toxic mineral or vegetable oil to counter balance shoulder rivets and plastic spacers

Check mark

Check and clean brass rollers to ensure they are rolling and not sliding on the cam surfaces of the counterbalance

Check mark

Check the bolts, screws, and nuts, tighten if necessary

Run this procedureArrow right

Non Chrome Surfaces Cleaning

Check mark

Daily Cleaning

Check mark

Scrape off particles adhering to the cooking surface with a spatula

Check mark

Wipe down all surfaces with a warm, damp cloth and mild detergent

Check mark

Dry all surfaces after cleaning

Check mark

Notes and Additional Information

Check mark

Record any issues or observations during cleaning

Check mark

Check for carbon buildup

Check mark

Is there significant carbon buildup requiring 'Carbon Cleaning' procedures?

Run this procedureArrow right

Chrome Surfaces Cleaning

Check mark

Regular Cleaning

Check mark

Remove excess grease and food with a 4” (100mm) wide Razor Sharp type scraper with rounded corners.

Check mark

Wipe surface with a damp cloth if desired.

Check mark

End of Day Cleaning

Check mark

Use a damp cloth and a non-silicated, non-abrasive, non-chlorinated cleaner to wipe surface clean.

Check mark

Wipe surface with a clean wet cloth.

Check mark

Cleaning Non-Cooking Surfaces

Check mark

Use a clean cloth and good non-abrasive cleaner to clean the stainless steel body of the griddle.

Check mark

Wipe the control panel front with a soft cloth.

Run this procedureArrow right

Parts for Star Two-Sided Grills GR10

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Screw, Handle

2C-Z2992

Handle - 10"

2V-Z2990

Arm - 10"

2B-Z2988

Housing-Top-10"

D9-Z2038

Conduit Keeper Plate

24-Z3827

Screw, Handle

2C-Z2992

Handle - 10"

2V-Z2990

Arm - 10"

2B-Z2988

Housing-Top-10"

D9-Z2038

Conduit Keeper Plate

24-Z3827

Screw, Handle

2C-Z2992

Handle - 10"

2V-Z2990

Arm - 10"

2B-Z2988

Housing-Top-10"

D9-Z2038

Conduit Keeper Plate

24-Z3827
