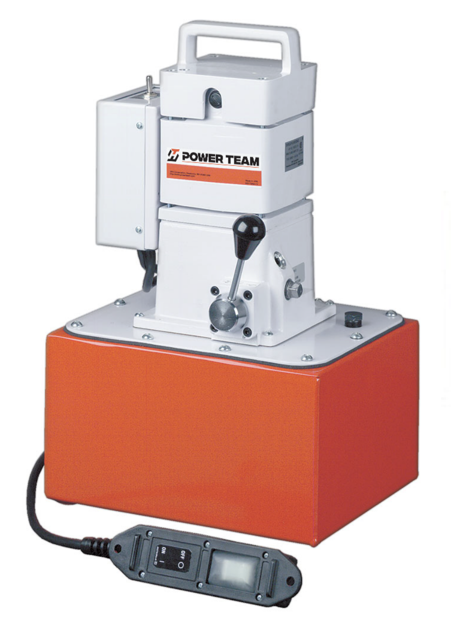

SPX Flow Hydraulic Pump PE184

Disconnect the unit from the power supply before performing maintenance or repair procedures.

Ensure maintenance is performed in a dust-free area by a qualified technician.

Inspect for the following conditions

Drain, flush, and refill the reservoir with approved Power Team hydraulic fluid after every 300 hours of use.

Describe the general working conditions and severity of use for fluid change frequency adjustment.

Draining And Flushing The Reservoir

Clean the pump exterior before removing the pump interior from the reservoir.

Remove screws fastening the motor and pump assembly to the reservoir.

If equipped with a 2-gallon reservoir, were the screws discarded?

Remove the motor assembly and place aside.

Ensure no damage to the pump filter or pressure regulating valves when lifting the pump and motor off the reservoir.

Remove the brush holder caps and brush assemblies

Measure the length of the brush assemblies in mm

Are the brush assemblies 4.7mm (3/16") long or less?

Replace the brush assemblies if they are 4.7mm (3/16") long or less

Install brush assemblies and brush holder caps

Establish a routine to keep the hydraulic system free from debris

Seal unused couplers with dust covers

Keep hose connections free of debris

Ensure equipment attached to a cylinder is kept clean

Keep the breather-hole in the filler cap clean and unobstructed

Is the hydraulic fluid Power Team brand?
