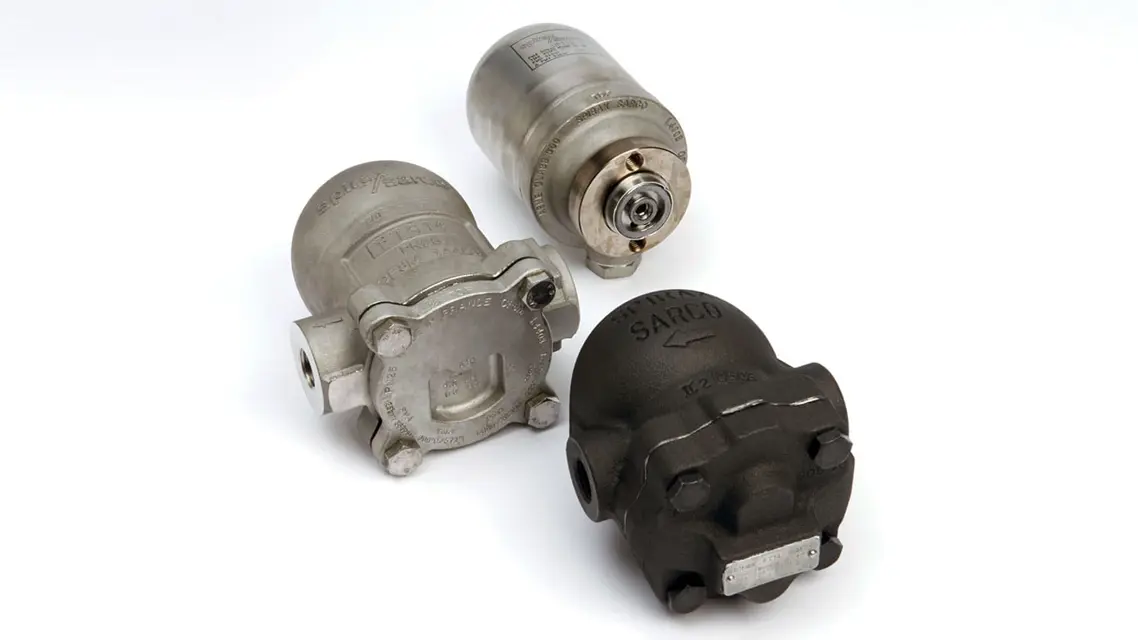

Spirax Sarco Steam Trap FTB-200
Create an account to install this asset package.
Maintenance Plans for Spirax Sarco Steam Trap Model FTB-200
Integrate maintenance plans directly into your work orders in MaintainX.
Air Vent Testing
Air Vent Removal and Testing
Remove the air vent for testing
Test the air vent for proper operation
Is replacement of the air vent necessary?
Gasket and Surface Preparation
Remove all traces of the old gasket from the body and cover
Ensure that the gasket surfaces are clean and undamaged
Reassembly and Torque Application
Use a new cover gasket to reassemble the trap
Trap Inspection
Preparation
Ensure the trap is properly isolated
Relieve any remaining pressure in the trap by opening the blowdown valve on the upstream strainer
Wait until the trap has cooled
Drain Condensate
Choose the method to drain condensate from the trap body
Disassembly
Remove and save the cover bolts
Remove the body or cover
Parts for Spirax Sarco Steam Trap FTB-200
Access the parts list for your equipment in MaintainX.
Valve Mechanism Kit, 2-1/2"
58158
Gasket Kit, 2-1/2"
68806
Float Kit, 2-1/2"
58160
Air Vent Kit
62652
Valve Mechanism Kit, 2-1/2"
58158
Gasket Kit, 2-1/2"
68806
Float Kit, 2-1/2"
58160
Air Vent Kit
62652
Valve Mechanism Kit, 2-1/2"
58158
Gasket Kit, 2-1/2"
68806
Float Kit, 2-1/2"
58160
Air Vent Kit
62652
