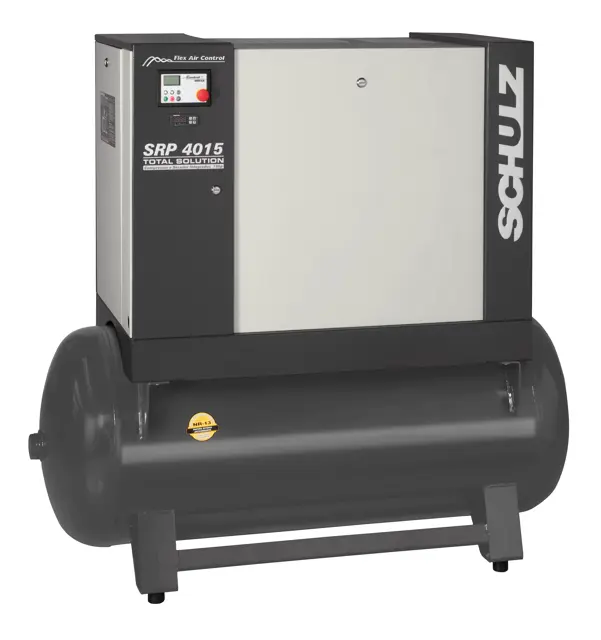

Schulz Air Compressor SRP4015FLEX
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Schulz Air Compressor SRP4015FLEX
Create an account to install this asset package.
Maintenance Plans for Schulz Air Compressor Model SRP4015FLEX
Integrate maintenance plans directly into your work orders in MaintainX.
2000 Hourly Air Compressor Maintenance
PROCEDURES BEFORE BEGINNING MAINTENANCE
ATTENTION
There are hot surfaces inside the compressor cabinet after its stop.
The use of Schulz genuine lubricant oil and parts extends the useful life of your compressor, preventing, thus, the loss of the Warranty of you compressor.
A. Disconnect the compressor and make sure the tank has no pressure (wait for five minutes)
B. Disconnect the compressor from the power supply (disconnecting switch) and make sure the compressor cannot be inadvertently turned on
For compressors with remote command the used in group, you must put up a sign “In Service”, on the start switch
C. Close the valve between the compressed air system and the compressor
1. Replace the oil filter compressors up to 40hp with synthetic oil*(2)
1000 Hourly Air Compressor Maintenance
ATTENTION: There are hot surfaces inside the compressor cabinet after its stop. The use of Schulz genuine lubricant oil and parts extends the useful life of your compressor, preventing, thus, the loss of the Warranty of you compressor.
PROCEDURES BEFORE BEGINNING MAINTENANCE
Disconnect the compressor and make sure the tank has no pressure (wait for five minutes)
Disconnect the compressor from the power supply (disconnecting switch) and make sure the compressor cannot be inadvertently turned on
Close the valve between the compressed air system and the compressor
Change lubricant oil mineral 1000*(8)
Turn off the compressor and wait for at least 5 (five) minutes for the elimination of the pressure of the system
Open valve 4 and collect the used oil in a container
Open the filling plug 2 and fill with LUB SCHULZ, LUB SCHULZ SEMI SYNTHETIC or SYNTHETIC LUB SCHULZ oil until the oil level reaches the lower part of the filling plug
4000 Hourly Air Compressor Maintenance
PROCEDURES BEFORE BEGINNING MAINTENANCE
ATTENTION: There are hot surfaces inside the compressor cabinet after its stop. The use of Schulz genuine lubricant oil and parts extends the useful life of your compressor, preventing, thus, the loss of the Warranty of you compressor.
Disconnect the compressor and make sure the tank has no pressure (wait for five minutes)
Disconnect the compressor from the power supply (disconnecting switch) and make sure the compressor cannot be inadvertently turned on
Close the valve between the compressed air system and the compressor
Change lubricant oil mineral 4000
Turn off the compressor and wait for at least 5 (five) minutes for the elimination of the pressure of the system
Open valve 4 and collect the used oil in a container
Open the filling plug 2 and fill with LUB SCHULZ, LUB SCHULZ SEMI SYNTHETIC or SYNTHETIC LUB SCHULZ oil until the oil level reaches the lower part of the filling plug
1 Weekly Air Compressor Maintenance
PROCEDURES BEFORE BEGINNING MAINTENANCE
ATTENTION: There are hot surfaces inside the compressor cabinet after its stop.
The use of Schulz genuine lubricant oil and parts extends the useful life of your compressor, preventing, thus, the loss of the Warranty of you compressor.
Disconnect the compressor and make sure the tank has no pressure (wait for five minutes)
Disconnect the compressor from the power supply (disconnecting switch) and make sure the compressor cannot be inadvertently turned on
Close the valve between the compressed air system and the compressor
Check the oil level and airend discharge temperature
Check the air filter element restriction level
Check the air/oil separator element restriction level
1 Yearly Air Compressor Maintenance
PROCEDURES BEFORE BEGINNING MAINTENANCE
ATTENTION: There are hot surfaces inside the compressor cabinet after its stop. The use of Schulz genuine lubricant oil and parts extends the useful life of your compressor, preventing, thus, the loss of the Warranty of you compressor.
Disconnect the compressor and make sure the tank has no pressure (wait for five minutes)
Disconnect the compressor from the power supply (disconnecting switch) and make sure the compressor cannot be inadvertently turned on
For compressors with remote command the used in group, you must put up a sign “In Service”, on the start switch
Close the valve between the compressed air system and the compressor
Maintenance Tasks
Inspect the safety valve
Replace coalescing pre-filter element*(7)
Parts for Schulz Air Compressor SRP4015FLEX
Access the parts list for your equipment in MaintainX.
Lubricant Oil Lub Schulz Mineral 1000 (Drum 20 Liters)
101.0173-0
Lubricant Oil Lub Schulz Mineral 4000 (Drum 20 Liters)
101.0280-0/AT
Lubricant Oil Lub Schulz Synthetic 8000 (Drum 20 Liters)
101.0239-0/AT
Air Filter Element (Primary)
007.0184-0/AT
Oil Filter
007.0177-0/AT
Lubricant Oil Lub Schulz Mineral 1000 (Drum 20 Liters)
101.0173-0
Lubricant Oil Lub Schulz Mineral 4000 (Drum 20 Liters)
101.0280-0/AT
Lubricant Oil Lub Schulz Synthetic 8000 (Drum 20 Liters)
101.0239-0/AT
Air Filter Element (Primary)
007.0184-0/AT
Oil Filter
007.0177-0/AT
Lubricant Oil Lub Schulz Mineral 1000 (Drum 20 Liters)
101.0173-0
Lubricant Oil Lub Schulz Mineral 4000 (Drum 20 Liters)
101.0280-0/AT
Lubricant Oil Lub Schulz Synthetic 8000 (Drum 20 Liters)
101.0239-0/AT
Air Filter Element (Primary)
007.0184-0/AT
Oil Filter
007.0177-0/AT
