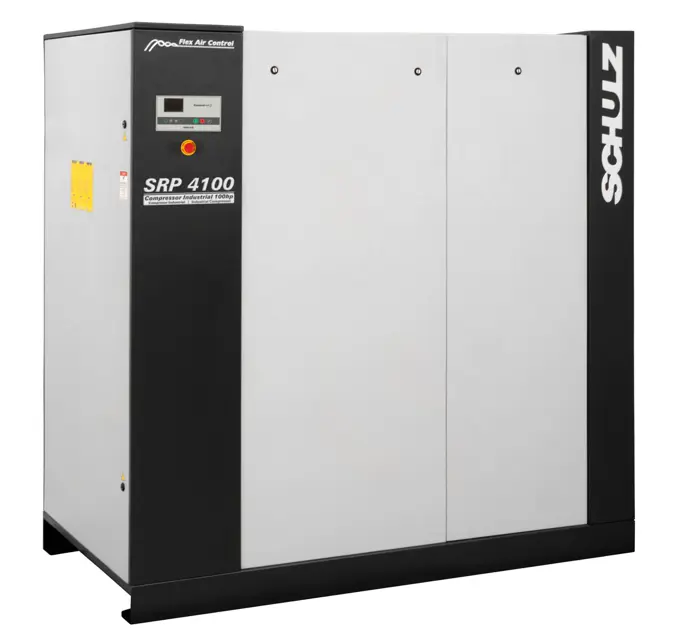

Schulz Air Compressor SRP4100FLEX
Create an account to install this asset package.
Maintenance Plans for Schulz Air Compressor Model SRP4100FLEX
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Air Compressor Maintenance
PROCEDURES BEFORE BEGINNING MAINTENANCE
ATTENTION: There are hot surfaces inside the compressor cabinet after its stop. The use of Schulz genuine lubricant oil and parts extends the useful life of your compressor, preventing, thus, the loss of the Warranty of you compressor.
Disconnect the compressor and make sure the tank has no pressure (wait for five minutes)
Disconnect the compressor from the power supply (disconnecting switch) and make sure the compressor cannot be inadvertently turned on
For compressors with remote command the used in group, you must put up a sign “In Service”, on the start switch
Close the valve between the compressed air system and the compressor
Maintenance Tasks
Inspect the safety valve
Replace coalescing pre-filter element
1000 Hourly Air Compressor Maintenance
ATTENTION: There are hot surfaces inside the compressor cabinet after its stop. The use of Schulz genuine lubricant oil and parts extends the useful life of your compressor, preventing, thus, the loss of the Warranty of you compressor.
Disconnect the compressor and make sure the tank has no pressure (wait for five minutes)
Disconnect the compressor from the power supply (disconnecting switch) and make sure the compressor cannot be inadvertently turned on
Close the valve between the compressed air system and the compressor
Change lubricant oil mineral 1000*(8)
Turn off the compressor and wait for at least 5 (five) minutes for the elimination of the pressure of the system
Open valve 4 and collect the used oil in a container
Open the filling plug 2 and fill with LUB SCHULZ, LUB SCHULZ SEMI SYNTHETIC or SYNTHETIC LUB SCHULZ oil until the oil level reaches the lower part of the filling plug
Close the filling plug after the filling
1 Weekly Air Compressor Maintenance
PROCEDURES BEFORE BEGINNING MAINTENANCE
ATTENTION: There are hot surfaces inside the compressor cabinet after its stop. The use of Schulz genuine lubricant oil and parts extends the useful life of your compressor, preventing, thus, the loss of the Warranty of you compressor.
Disconnect the compressor and make sure the tank has no pressure (wait for five minutes)
Disconnect the compressor from the power supply (disconnecting switch) and make sure the compressor cannot be inadvertently turned on
Close the valve between the compressed air system and the compressor
Check the oil level and airend discharge temperature
Check the air filter element restriction level
Check the air/oil separator element restriction level
PROCEDURE FOR DRAINING THE CONDENSATE (WATER) FROM THE AIR/OIL TANK
8000 Hourly Air Compressor Maintenance
ATTENTION: There are hot surfaces inside the compressor cabinet after its stop. The use of Schulz genuine lubricant oil and parts extends the useful life of your compressor, preventing, thus, the loss of the Warranty of you compressor.
Disconnect the compressor and make sure the tank has no pressure (wait for five minutes)
Disconnect the compressor from the power supply (disconnecting switch) and make sure the compressor cannot be inadvertently turned on
For compressors with remote command the used in group, you must put up a sign “In Service”, on the start switch
Close the valve between the compressed air system and the compressor
Change lubricant oil synthetic 8000
Turn off the compressor and wait for at least 5 (five) minutes for the elimination of the pressure of the system
Open valve 4 and collect the used oil in a container
Open the filling plug 2 and fill with LUB SCHULZ, LUB SCHULZ SEMI SYNTHETIC or SYNTHETIC LUB SCHULZ oil until the oil level reaches the lower part of the filling plug
Air Compressor Maintenance
PROCEDURES BEFORE BEGINNING MAINTENANCE
ATTENTION: There are hot surfaces inside the compressor cabinet after its stop.
The use of Schulz genuine lubricant oil and parts extends the useful life of your compressor, preventing, thus, the loss of the Warranty of you compressor.
Disconnect the compressor and make sure the tank has no pressure (wait for five minutes)
Disconnect the compressor from the power supply (disconnecting switch) and make sure the compressor cannot be inadvertently turned on
Close the valve between the compressed air system and the compressor
Maintenance Tasks
Clean the radiator and the condenser externally
Tighten screws
Parts for Schulz Air Compressor SRP4100FLEX
Access the parts list for your equipment in MaintainX.
SH-46 Synthetic (Klüber), Lubricant Oil (20-L Drum)
101.0173-0
Lubricant Oil Lub Schulz Mineral 1000 (Drum 20 Liters)
101.0173-0
Lubricant Oil Lub Schulz Mineral 4000 (Drum 20 Liters)
101.0280-0/AT
Lubricant Oil Lub Schulz Synthetic 8000 (Drum 20 Liters)
101.0239-0/AT
Air Filter Element (Primary)
007.0168-0/AT
SH-46 Synthetic (Klüber), Lubricant Oil (20-L Drum)
101.0173-0
Lubricant Oil Lub Schulz Mineral 1000 (Drum 20 Liters)
101.0173-0
Lubricant Oil Lub Schulz Mineral 4000 (Drum 20 Liters)
101.0280-0/AT
Lubricant Oil Lub Schulz Synthetic 8000 (Drum 20 Liters)
101.0239-0/AT
Air Filter Element (Primary)
007.0168-0/AT
SH-46 Synthetic (Klüber), Lubricant Oil (20-L Drum)
101.0173-0
Lubricant Oil Lub Schulz Mineral 1000 (Drum 20 Liters)
101.0173-0
Lubricant Oil Lub Schulz Mineral 4000 (Drum 20 Liters)
101.0280-0/AT
Lubricant Oil Lub Schulz Synthetic 8000 (Drum 20 Liters)
101.0239-0/AT
Air Filter Element (Primary)
007.0168-0/AT
