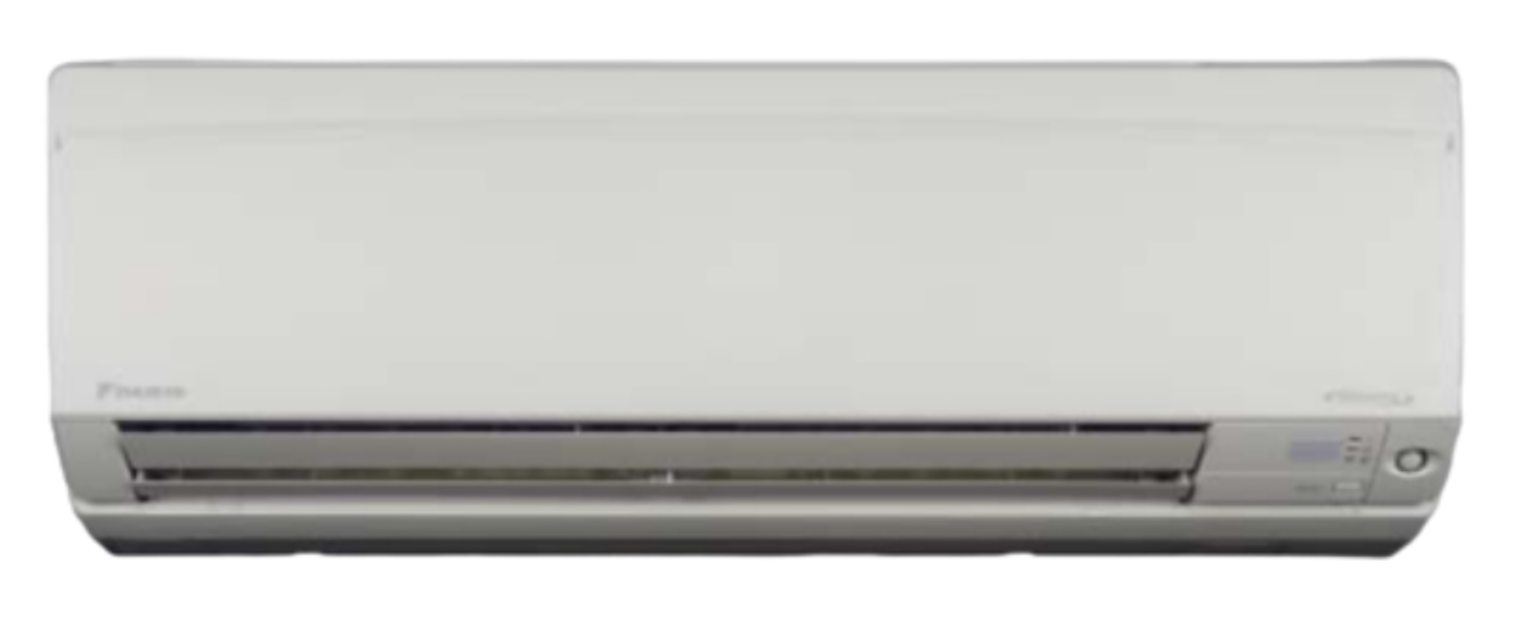

Daikin Indoor Unit Wall Mounted Type FTXS25D3VML

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Be sure to apply nitrogen replacement when heating up the brazed part.

1. Restore the piping by nonoxidation brazing.

In case of you cannot use the nitrogen gas, restore as quickly as possible.

2. It is required to prevent the carbonization of the oil inside the four way valve and the deterioration of the gaskets affected by heat. For the sake of this, wrap the four way valve with wet cloth and provide water so that the cloth will not be dried and avoid excessive heating. (Keep below 120°C)

Be careful so as not to break the pipes by pressing it excessively by pliers when withdrawing it.

In case of the difficulty with gas brazing machine

1. Disconnect the brazed part where is easy to disconnect and restore.

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Warning: Since it may happen that refrigeration oil in the compressor will catch fire, prepare wet cloth so as to extinguish fire immediately.

Warning: Ventilate when refrigerant leaks during the work. (If refrigerant contacts fire, it will cause to arise toxic gas.)

Caution: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas welding rod.

Disconnect the flagshaped terminals.

Detach the compressor lead wire.

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Take care not to cut your finger by the fins of the heat exchanger.

Loosen the 4 screws (2 on both sides) of the top panel.

Loosen the 6 screws of the front panel.

Loosen the 2 screws (each 1 in front and back) of the clamp plate.

Slide the clamp plate to the left to undo the hooks and remove the plate.

Undo the upper 2 hooks to remove the front panel. Align the position of hole of the upper hook to pull the front panel out.

Lift the front panel up to remove the left side hooks and open the panel.

Warning: Never touch any live parts for at least 10 minutes after turning off the circuit breaker.

If unavoidably necessary to touch a live part, make sure there is no DC voltage using the tester.

Check the continuity with the tester.

Reverse the pins and make sure there is continuity.

Sign off on the capacitor check

Warning: Check the main circuit for short-circuit before proceeding

Main circuit checked for short-circuit?

Warning: Be careful never to touch any live parts.

Measure the voltage according to the drawing of the model in question

Sign off on the capacitor voltage check
