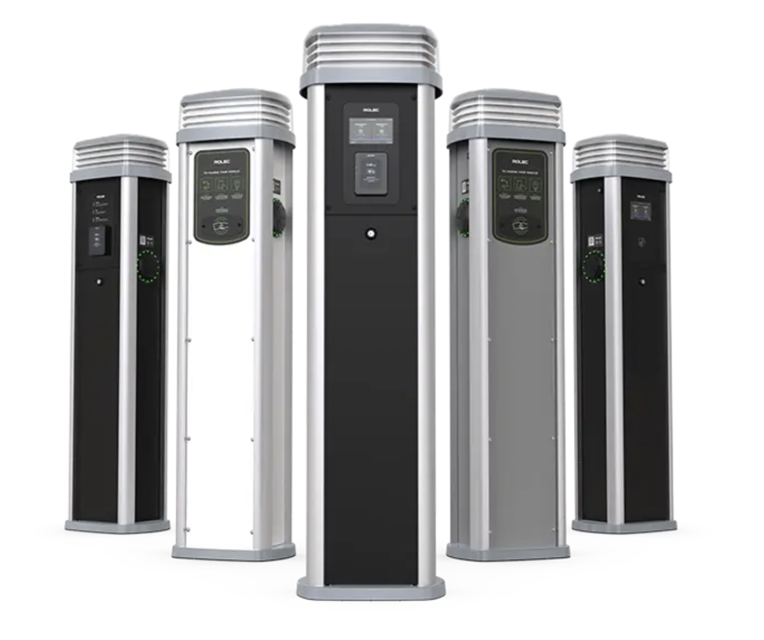

Rolec Services EV Charger ROLEC9421

Check for physical damage and presence of warning labels

Status indicators operating and displaying correct status

Check the condition of installed components

Access/cable lock operational if installed

Check for physical damage internally

Visual inspection for any heat degradation

No foreign bodies or other contamination present

Ensure the inspection area is clear and safe for work

Verify that all necessary tools and equipment are available

Electrical Inspection and Testing

Inspect the Chargepoint for any visible damage or wear

Measure the voltage at the Chargepoint

Measure the current draw of the Chargepoint

Is the Chargepoint operating within the specified electrical parameters?

Ensure wires and terminals are secure

Test earth fault loop impedance and record the value

Test power outlets using a load simulator

If Chargepoint illumination is installed, does the illumination and light sensor operate correctly?

Clean the external surfaces with a damp cloth

Is the working environment requiring more frequent cleaning?

Ensure the following materials are NOT used during cleaning

Ensure electrical power to the Chargepoint is OFF

Remove and retain the fixings securing the front fascia panel

Carefully ease the panel away from the unit

Locate and remove 2x 5mm hex bolts and washers

Carefully lift the clear dome from the pedestal
