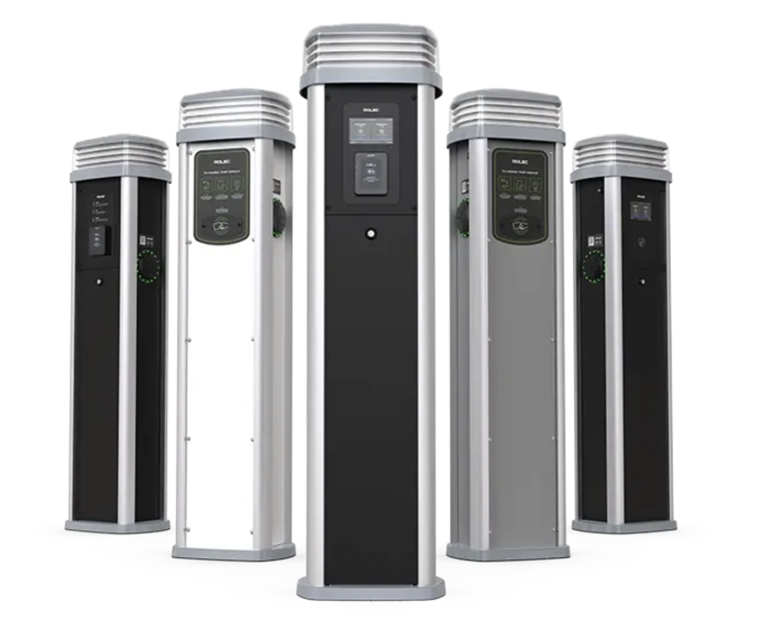

Rolec Services EV Charger ROLFC0411B

Check for physical damage and presence of warning labels

Status indicators operating and displaying correct status

Check the condition of installed components

Access/cable lock operational if installed

Check for physical damage internally

Visual inspection for any heat degradation

No foreign bodies or other contamination present

Ensure electrical power to the Chargepoint is OFF

Gather necessary hand tools for the procedure

Remove and retain the fixings securing the front fascia panel

Carefully ease the panel away from the unit

Ensure all electrical connections are secure before refitting the panel

Locate and remove 2x 5mm hex bolts and washers securing the clear dome

Ensure wires and terminals are secure

Test earth fault loop impedance

Test power outlets using a load simulator

If Chargepoint illumination is installed, check the illumination and light sensor operate correctly

Ensure the inspection area is clear and safe for work

Is the electrician appropriately qualified for the inspection?

Electrical Inspection and Testing

Inspect the Chargepoint for any visible damage or wear

Record the voltage reading of the Chargepoint

Record the current reading of the Chargepoint

Test the switchgear functionality

Clean the external surfaces with a damp cloth

Is the working environment requiring more frequent cleaning?

Ensure the following are NOT used during cleaning
