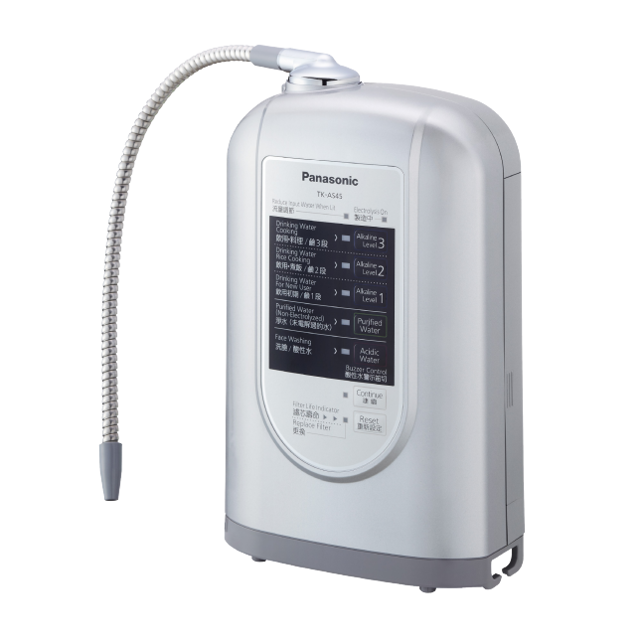

Panasonic Panasonic Alkaline Ionizer TK-AS45 TK-AS45

Water faucet which can not install the Alkaline Ionizer

• Faucet without a metal lip end

• Faucet with an end of 10 mm or less

• Water faucet which can attach the Alkaline Ionizer using options.

• Soak a soft cloth in water, wring it out well, and use it to wipe the units and parts.

• Use a toothbrush or other implement to remove dirt at the shower part.

• Use a cotton swab, etc. to remove dirt at the end of the outlet pipe.

※ Dirt and mold may occur if rinse water splatters all around. It is recommended to perform maintenance periodically or after every use.;

When Moving the Alkaline lonizer

2 Remove the cap, turn the main unit upside down, and drain off the inside water.

3 Disconnect the water supply hose from the bypass selector.

• After disconnecting the water supply hose, put the hose fastening nut back on the bypass selector (to ensure that the; nut is not misplaced or lost).

• Drain off the water inside the bypass selector.

• Do not place the main unit on its side or upside down with the cartridge removed (since water may get inside the main unit and cause trouble).

5 Put the end of the water supply hose at a position lower than the bottom of the main unit, and drain off the water inside the hose.

The water volume will be reduced if dirt and other foreign matter are allowed to clog the filter at the bypass selector mount coupling. Follow the steps below to clean the filter.

1. Loosen the nut, remove the bypass selector, and take out the filter.

• Set the bypass selector to “Purified”.

2. Wash the filter and water Intake.

3. Install the bypass selector.

• After installing the bypass selector, run water for about 5 seconds at the “Unpurified” or “Shower” setting.;
