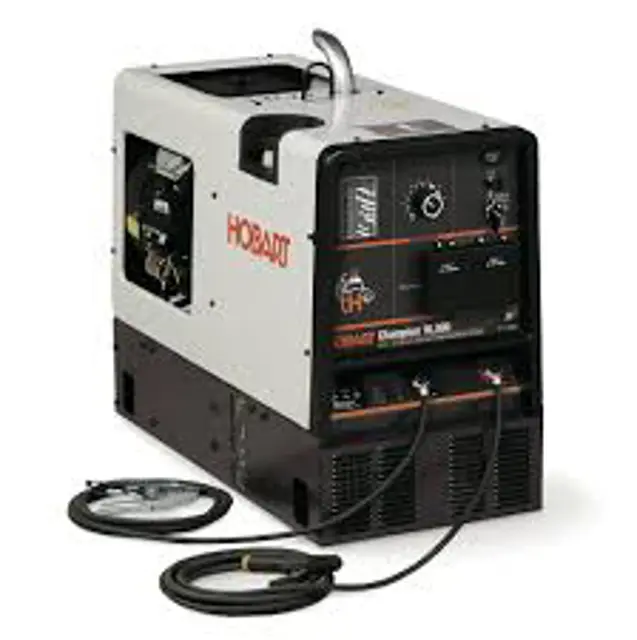

Hobart Hobart - Champion 10,000 Champion 10,000

After tuning engine, check engine speeds with a tachometer (see table). If necessary, adjust speeds as follows:

Start engine and run until warm

Remove wrapper to access speed adjustments

Move Engine Control switch to Run/Idle position

Loosen mounting screws. Adjust solenoid position so engine runs at idle speed. If necessary, back out idle speed screw so solenoid can be moved to correct position

Do not run engine without air cleaner or with dirty element

Wash wrapper with soap and water solution. Allow wrapper to air dry completely

Spread 1 tablespoon SAE 30 oil evenly into wrapper. Squeeze out excess oil

Replace element if dirty, oily, or damaged;

Change engine oil and filter according to engine owner's manual

Close valve and valve cap before adding oil and running engine

Fill crankcase with new oil to full mark on dipstick (see Section 8-1);l 4 Fuel Filter

Replace line if cracked or worn

Blow out or vacuum inside. During heavy service, clean monthly.

IF If the unit is extremely over-loaded, weld and auxiliary power will stop. Turn unit off and restart to reset the generator protection circuit and restore weld and auxiliary power output

If the rated output of the unit is exceeded, engine speed may vary rapidly until the weld or auxiliary power load is reduced

F1 protects the generator excitation circuit. If F1 opens, there will be no/low weld and auxiliary power output

F6 protects the engine wiring harness. If F6 opens, the engine does not crank. If F6 opens while engine is running, weld and auxiliary power output stops

Replace any open fuses. Reinstall panel before operating unit

IF If a fuse opens, it usually indicates a more serious problem exists. Contact a Factory Authorized Service Agent;
