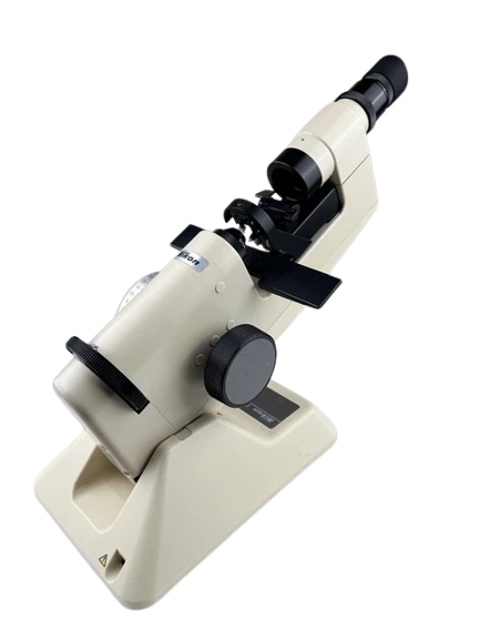

Nikon Lensmeter EL-8

There is a battery lid at the bottom of this instrument.

Push the two clicks in the battery lid in the direction of the arrows to open the lid. Place dry cell paying attention to their + and - direction. Close the lid.

(The life of dry cells is about 150 hours under continuous use.);

Turn OFF the POWER switch after completion of measurement

Disconnect the plug of the AC adaptor from the wall outlet after completion of measurement

Put on the vinyl dust cover provided, whenever the instrument is not in use

5-3 Setting of Ink Cartridge (Optional accessory)

Fix the tip of the marking pen and loosen the retaining screw on its top with screwdriver

Hold the pen so that it will not pop out because of the internal spring

Reset the removed spring again and insert the cartridge, then fasten the cartridge retaining screw provided with the cartridge

Fasten the screw if the height of the three tips is not normal

5-2 Adjustment of Target Position

Lens is not placed on the lens table

Sharpest target obtained by turning the diopter measuring handle

Target is in the center of view field

If the target is off the center of view field

Three adjusting screws loosened or tightened with a standard screwdriver

Screw facing toward the direction to move the target is tightened

Other screws loosened about one half turn beforehand
