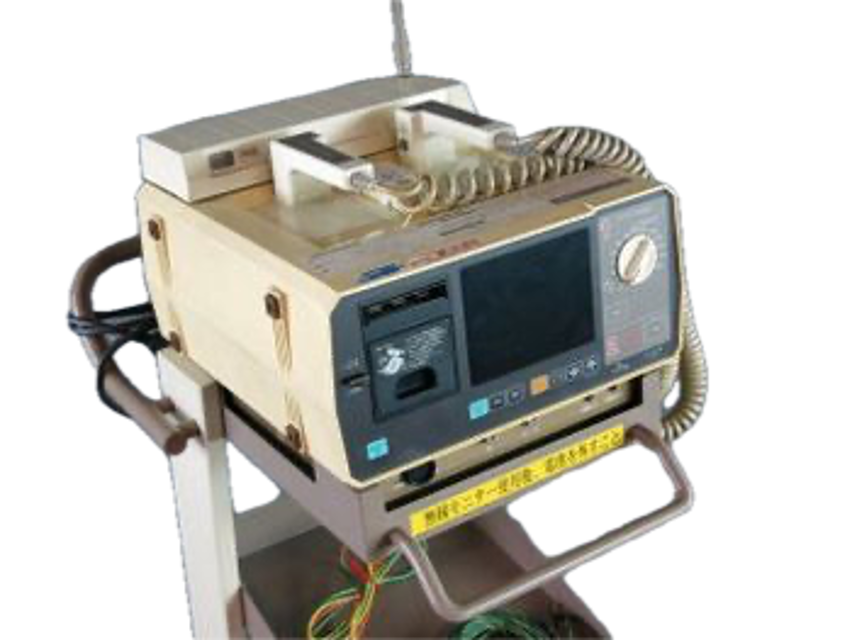

Nihon Kohden Corporation Portable Defibrillator TEC7100/7200A

WARNING: Do not use contact gel when performing the discharge test.

Set the ENERGY SELECT dial to 'ECG MON ON' position to activate the self-diagnostic function.

Did the 'READY' message appear on the CRT screen?

Select the TEST mode using the LEAD select key.

Press the SYNC MODE select key to illuminate the SYNC mode indicator lamp.

Are spots indicating synchronization positions appearing at the rising portions of the ECG simulated waveforms?

Visually inspect the battery for any damage such as cracks, deformations, or electrolyte leakage on the terminals.

Is the battery damaged or leaking?

Replace the battery if necessary.

Clean the battery if it is dirty.

Store the spare battery in a dry, cool place.

Is the battery fully charged before storing?

Remove contact gel completely from the paddle electrode faces

Remove dirt completely from inside the paddle housing with a clean cloth

Disinfection and Sterilization of the Paddles

Select the appropriate sterilization method for external paddles

Select the appropriate sterilization method for internal paddles
