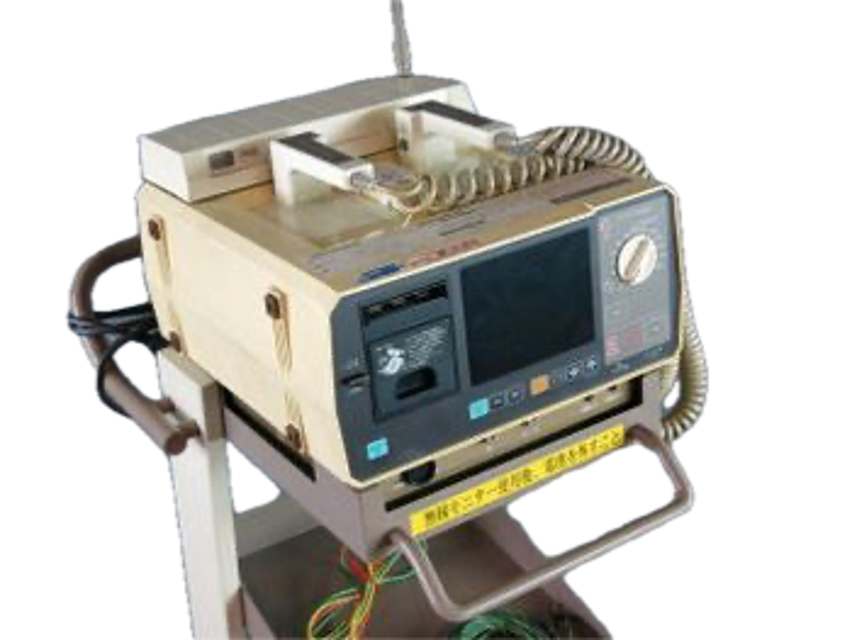

Nihon Kohden Corporation Portable Defibrillator TEC7100/7200U

Visually inspect the battery for any damage such as cracks, deformations, or electrolyte leakage on the terminals.

Is the battery in need of replacement?

Clean the battery if it is dirty.

Store the spare battery in a dry, cool place.

Is the battery fully charged before storing?

Clean the battery with a clean cloth, avoiding organic solvents such as gasoline, thinner, or oils.

Remove contact gel completely from the paddle electrode faces

Remove dirt completely from inside the paddle housing with a clean cloth

Disinfection and Sterilization of the External Paddles

Ensure external paddles are not exposed to heat over 60 °C

Ensure external paddles are not dipped into water or other liquids

Select suitable sterilization methods for external paddles

Disinfection and Sterilization of the Internal Paddles

Select suitable sterilization methods for internal paddles

WARNING: Do not use contact gel when performing the discharge test.

Set the ENERGY SELECT dial to 'ECG MON ON' position to activate the self-diagnostic function.

Did the 'READY' message appear on the CRT screen?

Select the TEST mode using the LEAD select key.

Press the SYNC MODE select key to illuminate the SYNC mode indicator lamp.

Verify that spots indicating synchronization positions appear at the rising portions of the ECG simulated waveforms and a sound synchronized with the waveform is emitted.
