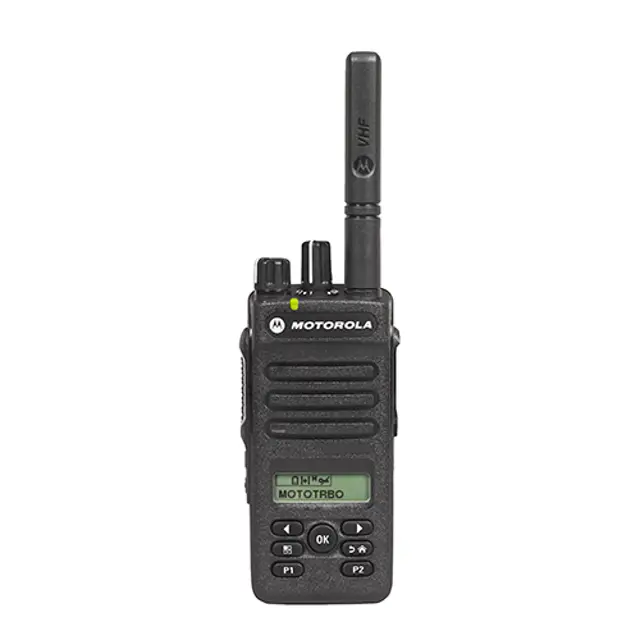

MOTOROLA Two-way Radio XPR 3500e

Create an account to install this asset package.

Maintenance Plans for MOTOROLA Two-way Radio Model XPR 3500e

Integrate maintenance plans directly into your work orders in MaintainX.

Two-way Radio Maintenance

Preventive Maintenance

Periodic visual inspection and cleaning is recommended.

Inspection

Check that the external surfaces of the radio are clean, and that all external controls and switches are functional. It is not recommended to inspect the interior electronic circuitry.

Cleaning Procedures

The following procedures describe the recommended cleaning agents and the methods to be used when cleaning the external and internal surfaces of the radio. External surfaces include the front kit, housing assembly and battery case. These surfaces should be cleaned whenever a periodic visual inspection reveals the presence of smudges, grease, and/or grime.

The only recommended agent for cleaning the external radio surfaces is a 0.5% solution of a mild dishwashing detergent in water. The only factory recommended liquid for cleaning the printed circuit boards and their components is isopropyl alcohol (100% by volume).

NOTE:

Internal surfaces should be cleaned only when the radio is disassembled for service or repair.

Run this procedure

1 Yearly Battery Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Enter the name of the battery

Use DeoxIT®GOLD cleaner/lubricant for cleaning

Was the pen-based package used for cleaning?

Modify the pen's tip if necessary for better penetration

Was the battery's contact surface wiped with the felt tip?

Inspect the contact surfaces for signs of advanced wear after cleaning

Any signs of advanced wear?

If advanced wear is evident, the battery should be replaced

Run this procedure

1 Yearly Two-way Radio Maintenance

RF Plug Reassembly

1. If required, replace the RF plug by using a tweezer.

2. If Motorola nameplate is damaged, remove nameplate with a tweezer and replace a new one.

3. Make sure the RF plug and nameplate is flush to the housing and not bulging up. If its bulging up disassemble and reassemble back.

4. If product nameplate is damaged, remove nameplate with a tweezer and replace a new one.

NOTE: Regular maintenance (at least annually) of this area is recommended to ensure contamination free interface and to prolong the life of the battery contacts.

Ensuring Radio Immersibility

This section discusses radio immersibility concerns, tests, and disassembly and reassembly of the XPR series radios.

1) Servicing
