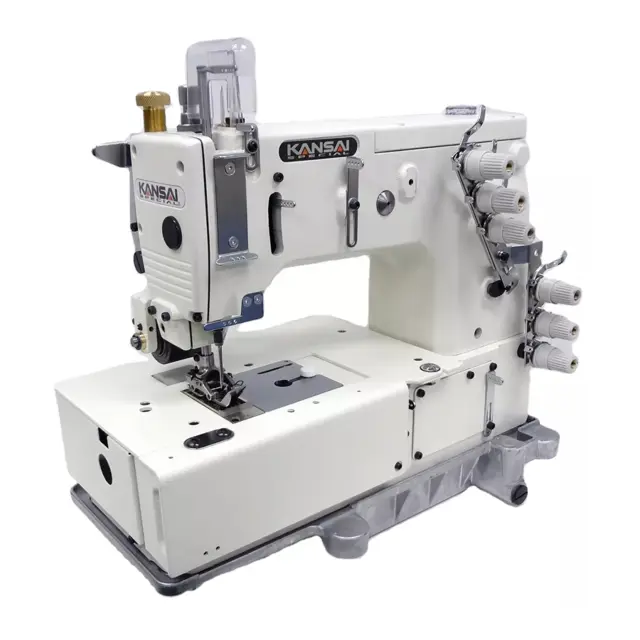

Morimoto Manufacturing Industrial Sewing Machine W8100/C
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Morimoto Manufacturing Industrial Sewing Machine W8100/C
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Morimoto Manufacturing Industrial Sewing Machine W8100/C
Create an account to install this asset package.
Maintenance Plans for Morimoto Manufacturing Industrial Sewing Machine Model W8100/C
Integrate maintenance plans directly into your work orders in MaintainX.
6 Monthly Filter Element Cleaning
Pre-Cleaning Inspection
Is the filter element contaminated?
Is there little or no oil flowing from the nozzle?
Filter Element Cleaning
Remove the oil reservoir
Clean the filter element
Post-Cleaning Verification
Is the oil flowing properly from the nozzle after cleaning?
Needle Replacement
Preparation
Turn off the machine
Press the pedal until the machine stops
Needle Replacement
Check the needle orientation
Install the needle correctly
Sewing Machine Lubrication
Oil Selection
Use Kansai Special’s genuine oil (Part No. 28-611)
Oiling Process
Remove rubber plug A from the oil hole
Fill the machine with oil until the oil level is at the top line on oil gauge C
Ensure oil level is between H and L after first lubrication
Oil Flow Check
Run the machine to check if oil is splashing from oil pipe outlet B
Initial 250 Hours Oil Replacement
Removing the machine and draining the oil
Remove the V belt from the motor pulley
Remove the machine from the table
Remove screw D to drain the oil
Tighten screw D after draining the oil
Filling the machine with oil
Remove rubber plug A from the oil hole
Fill the machine with oil until the oil level is at the top line on oil gauge C
Ensure oil level is between H and L after first lubrication
Parts for Morimoto Manufacturing Industrial Sewing Machine W8100/C
Access the parts list for your equipment in MaintainX.
Needle
UY128GAS
Genuine Oil
28-611
Needle
UY128GAS
Genuine Oil
28-611
Needle
UY128GAS
Genuine Oil
28-611
