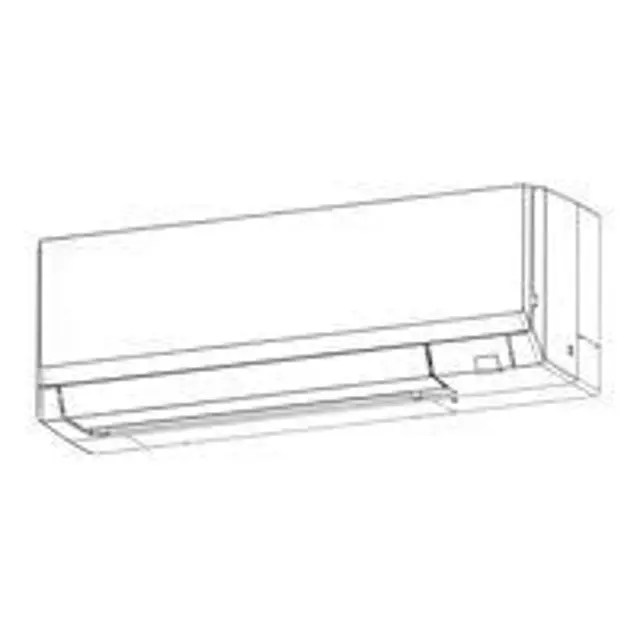

Mitsubishi Indoor Unit TPKFYP012LM140A
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Indoor Unit Model TPKFYP012LM140A
Integrate maintenance plans directly into your work orders in MaintainX.
Indoor Unit Heat Exchanger And LEV Replacement
Remove the panel and the corner box
Remove the electrical box and the nozzle assembly
Remove the water cover
Remove the pipe thermistors
Disconnect the connector (CN60) on the indoor controller board
Remove the motor bed together with fan motor and motor band
Remove 2 screws fixing the left side of the heat exchanger
Remove the heat exchanger with LEV
Sign off on the heat exchanger and LEV replacement
Indoor Unit Fan Motor And Line Flow Fan Replacement
Remove the panel and the corner box
Remove the electrical box and the nozzle assembly
Remove the water cover
Loosen the screw fixing the line flow fan
Remove 3 screws fixing the motor bed
Remove the motor bed together with fan motor and motor band
Release the 2 hooks of the motor band. Remove the motor band. Pull out the indoor fan motor
Remove 2 screws fixing the left side of the heat exchanger
Lift the heat exchanger, and pull out the line flow fan to the lower-left
Indoor Unit Refrigirant Charging
Cautions for service
Refrigerant recovered from the unit completely
Refrigerant not released in the air
Cycle charged with specified amount of refrigerant after service
Filter drier installed during service
Filter drier used for new refrigerant
Additional refrigerant charge
Cylinder for R410A is a syphon type
Charging performed with the cylinder of syphon stood vertically
Indoor Unit Adress/Controller/Wireless/Led Board Replacement
Remove the panel and the corner box
Remove the front and side electrical box covers
Disconnect the connectors of address board
Disconnect the connectors on the indoor controller board
Remove the switch board holder and open the cover
Pull out the indoor controller board toward you then remove the indoor controller board and switch board
Remove the holder of wireless remote controller board and LED board
Disconnect the connector of wireless remote controller board and LED board
Remove the wireless remote controller board and LED board from the holder
Indoor Unit Vane Motor Replacement
Remove the nozzle assembly
Remove 2 screws of the vane motor unit cover, and pull out the vane motor unit
Remove screw of the vane motor (LOWER)
Remove the vane motor (LOWER) from the vane motor unit cover
Disconnect the connector (white) from the vane motor (LOWER)
Remove 2 screw of the vane motor (UPPER)
Remove the vane motor (UPPER) from the vane motor unit cover
Disconnect the connector (blue) from the vane motor (UPPER)
Upload a photo of the replaced vane motor
Parts for Mitsubishi Indoor Unit TPKFYP012LM140A
Access the parts list for your equipment in MaintainX.
Drain Pump Kit
PAC-SK01DM-E
Drain Pump Kit
PAC-SK01DM-E
Drain Pump Kit
PAC-SK01DM-E
