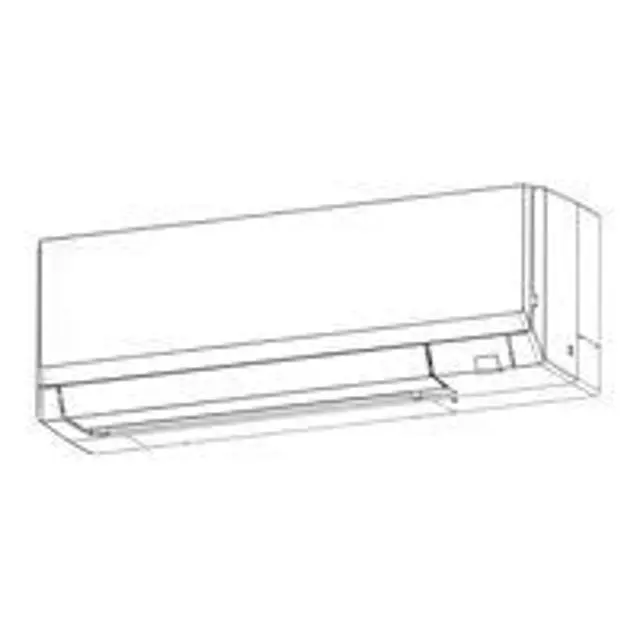

Mitsubishi Indoor Unit TPKFYP018LM140A
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Indoor Unit Model TPKFYP018LM140A
Integrate maintenance plans directly into your work orders in MaintainX.
Indoor Unit Refrigirant Charging
Cautions for service
Refrigerant recovered from the unit completely
Refrigerant not released in the air
Cycle charged with specified amount of refrigerant after service
Filter drier installed during service
Filter drier used is for new refrigerant
Additional refrigerant charge
Cylinder for R410A is a syphon type
Charging performed with the cylinder of syphon stood vertically
Indoor Unit Fan Motor And Line Flow Fan Replacement
Remove the panel and the corner box
Remove the electrical box and the nozzle assembly
Remove the water cover
Loosen the screw fixing the line flow fan
Remove 3 screws fixing the motor bed
Remove the motor bed together with fan motor and motor band
Release the 2 hooks of the motor band. Remove the motor band. Pull out the indoor fan motor
Remove 2 screws fixing the left side of the heat exchanger
Lift the heat exchanger, and pull out the line flow fan to the lower-left
Indoor Unit Heat Exchanger And LEV Replacement
Warning: This procedure requires trained personnel with PPE!
Panel and corner box removed
Electrical box and nozzle assembly removed
Water cover removed
Pipe thermistors removed
Connector (CN60) on the indoor controller board disconnected
Motor bed together with fan motor and motor band removed
2 screws fixing the left side of the heat exchanger removed
Heat exchanger with LEV removed
Indoor Unit Liquid And Gas Pipe Thermistor Replacement
Remove the panel and the corner box
Remove the electrical box covers
Remove the water cover
Remove the liquid pipe thermistor and gas pipe thermistors
Disconnect the connector (CN44) on the indoor controller board (TH22 and TH23/CN44)
Sign off on the thermistor replacement
Indoor Unit Nozzle Assembly And Drain Hose Replacement
Remove the panel and corner box
Remove the electrical box covers
Disconnect the vane motor connector (CNV) on the indoor controller board
Push fixture and pull out the drain hose from the nozzle assembly, and remove nozzle assembly
Upload a photo of the removed nozzle assembly
Parts for Mitsubishi Indoor Unit TPKFYP018LM140A
Access the parts list for your equipment in MaintainX.
Drain Pump Kit
PAC-SK01DM-E
Drain Pump Kit
PAC-SK01DM-E
Drain Pump Kit
PAC-SK01DM-E
