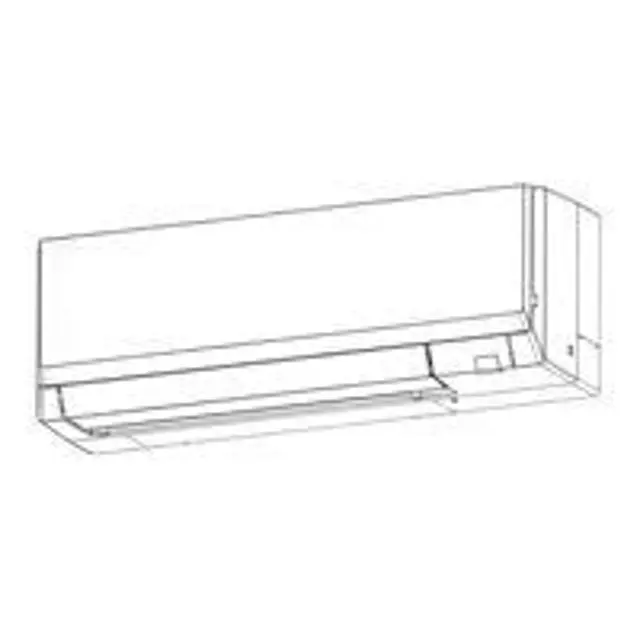

Mitsubishi Indoor Unit TPKFYP008LM140A

Remove the panel and the corner box

Loosen the screw fixing the line flow fan

Remove 3 screws fixing the motor bed

Remove the motor bed together with fan motor and motor band

Release the 2 hooks of the motor band. Remove the motor band. Pull out the indoor fan motor

Remove 2 screws fixing the left side of the heat exchanger

Refrigerant recovered from the unit completely

Refrigerant not released in the air

Amount of refrigerant charged in the cycle

Cylinder for R410A is a syphon type

Charging performed with the cylinder of syphon stood vertically

Remove the panel and corner box

Remove the electrical box covers

Disconnect the vane motor connector (CNV) on the indoor controller board

Push fixture and pull out the drain hose from the nozzle assembly, and remove nozzle assembly

Upload a photo of the removed nozzle assembly

Step 1: Vane Lower and Upper Shaft Removal

Insert the driver to the hole at VANE LOWER shaft and slide the VANE LOWER shaft (2 places each). Push VANE UPPER shaft with the driver.

Pull the VANE LOWER and VANE UPPER from unit.

Remove 2 screw caps of the front panel. Remove 2 screws.

Upload a photo of the removed screws (See Photo 1)

Hold the lower part of both ends of the front panel and pull it slightly toward you, and then remove the front panel by pushing it upward.

Remove the screw of the corner box.

Remove the panel and the corner box

Remove the front and side electrical box covers (each 2 screw)

Disconnect the connector for ground wire

Remove the screw on lower side of the electrical box

Push up the upper fixture catch to remove the box, then remove it from the box fixture
