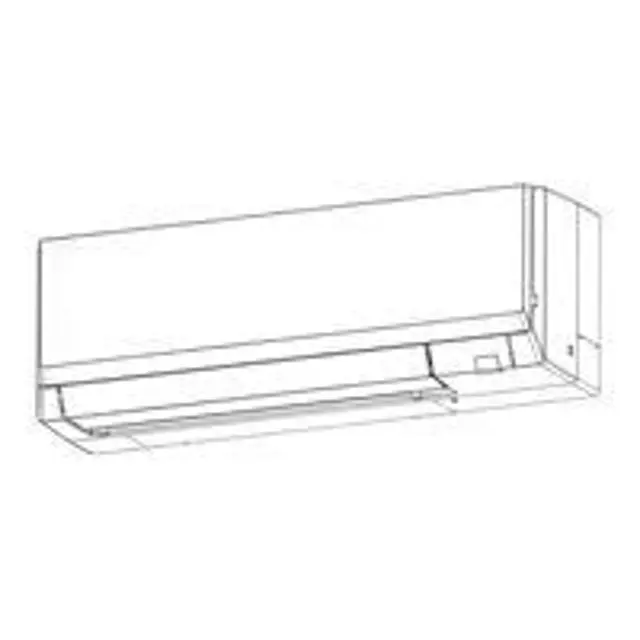

Mitsubishi Indoor Unit TPKFYP015LM140A

Need answers fast?
Explore the manual using AI.

Mitsubishi Indoor Unit TPKFYP015LM140A
Mitsubishi Indoor Unit TPKFYP015LM140A

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Mitsubishi Indoor Unit TPKFYP015LM140A

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi Indoor Unit TPKFYP015LM140A

Mitsubishi Indoor Unit TPKFYP015LM140A

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Indoor Unit Model TPKFYP015LM140A

Integrate maintenance plans directly into your work orders in MaintainX.

Indoor Unit Electrical Box Replacement

Check mark

Remove the panel and the corner box

Check mark

Remove the front and side electrical box covers (each 2 screw)

Check mark

Disconnect the connectors

Check mark

Disconnect the connectors

Check mark

Disconnect the connector for ground wire

Check mark

Remove the screw on lower side of the electrical box

Check mark

Push up the upper fixture catch to remove the box, then remove it from the box fixture

Run this procedureArrow right

Indoor Unit Vane Motor Replacement

Check mark

Remove the nozzle assembly

Check mark

Remove 2 screws of the vane motor unit cover, and pull out the vane motor unit

Check mark

Upload a photo of the vane motor unit after removal

Check mark

Remove screw of the vane motor (LOWER)

Check mark

Remove the vane motor (LOWER) from the vane motor unit cover

Check mark

Disconnect the connector (white) from the vane motor (LOWER)

Check mark

Remove 2 screw of the vane motor (UPPER)

Check mark

Remove the vane motor (UPPER) from the vane motor unit cover

Check mark

Upload a photo of the vane motor unit after removing the vane motor (UPPER)

Run this procedureArrow right

Indoor Unit Panel Replacement

Check mark

Step 1: Vane Lower and Upper Shaft Adjustment

Check mark

Insert the driver to the hole at VANE LOWER shaft and slide the VANE LOWER shaft (2 places each). Push VANE UPPER shaft with the driver.

Check mark

Pull the VANE LOWER and VANE UPPER from unit.

Check mark

Step 2: Front Panel Removal

Check mark

Remove 2 screw caps of the front panel. Remove 2 screws.

Check mark

Hold the lower part of both ends of the front panel and pull it slightly toward you, and then remove the front panel by pushing it upward.

Check mark

Step 3: Corner Box Removal

Check mark

Remove the screw of the corner box.

Check mark

Remove the corner box.

Run this procedureArrow right

Indoor Unit Fan Motor And Line Flow Fan Replacement

Check mark

Remove the panel and the corner box

Check mark

Remove the electrical box and the nozzle assembly

Check mark

Remove the water cover

Check mark

Loosen the screw fixing the line flow fan

Check mark

Remove 3 screws fixing the motor bed

Check mark

Remove the motor bed together with fan motor and motor band

Check mark

Release the 2 hooks of the motor band. Remove the motor band. Pull out the indoor fan motor

Check mark

Remove 2 screws fixing the left side of the heat exchanger

Check mark

Lift the heat exchanger, and pull out the line flow fan to the lower-left

Run this procedureArrow right

Indoor Unit Refrigirant Charging

Check mark

Cautions for service

Check mark

Refrigerant recovered from the unit completely

Check mark

Refrigerant not released in the air

Check mark

Cycle charged with specified amount of refrigerant after service

Check mark

Filter drier installed during service

Check mark

Additional refrigerant charge

Check mark

Cylinder for R410A is a syphon type

Check mark

Charging performed with the cylinder of syphon stood vertically

Check mark

Service tools

Run this procedureArrow right

Parts for Mitsubishi Indoor Unit TPKFYP015LM140A

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Drain Pump Kit

PAC-SK01DM-E

Drain Pump Kit

PAC-SK01DM-E

Drain Pump Kit

PAC-SK01DM-E
