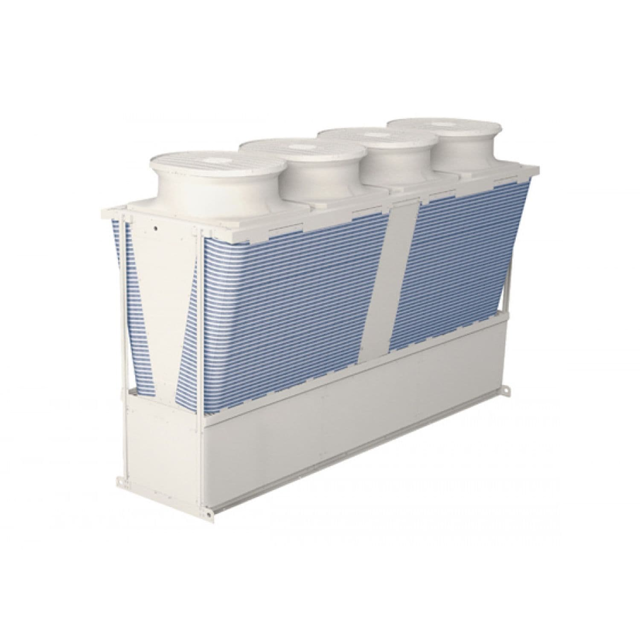

Mitsubishi Air Conditioner EACV-M1500YCL-BS

Need answers fast?
Explore the manual using AI.

Mitsubishi Air Conditioner EACV-M1500YCL-BS
Mitsubishi Air Conditioner EACV-M1500YCL-BS

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi Air Conditioner EACV-M1500YCL-BS

Mitsubishi Air Conditioner EACV-M1500YCL-BS

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Air Conditioner Model EACV-M1500YCL-BS

Integrate maintenance plans directly into your work orders in MaintainX.

Fan Replacement

Check mark

Remove the center panel by unscrewing the ten M5 screws from the panel.

Check mark

Disconnect the fan motor relay connectors.

Check mark

Remove the bell mouth together with the bell mouth mounting plate by unscrewing the four M5 screws.

Check mark

Cut the tie band. Bundle the fan motor wire, and place it near the fan motor.

Check mark

Remove the propeller by unscrewing the M12 box nut.

Check mark

Remove the fan motor by unscrewing the four screws.

Check mark

Reverse the procedure to complete the replacement.

Check mark

Sign off on the fan replacement

Run this procedureArrow right

Compressor Replacement

Check mark

Recover the refrigerant through the check joint (low-pressure (LP) side) on the left side of the unit next to the plate heat exchanger side.

Check mark

Each refrigerant circuit is independent. Only collect the refrigerant from the system whose LEV needs to be replaced.

Check mark

Refrigerant (R32) type

Check mark

When replacing compressors 1B, 2A, and 2B, remove the pillars by unscrewing the eight M5 screws.

Check mark

When replacing compressor 1A, remove the four M5 screws and four M4 screws, and move the breaker box out of the way, avoiding the wire running near the suction pipe.

Check mark

Remove the two check joints, two pressure sensors, and three connectors.

Check mark

Remove the pressure sensor fixing plate by unscrewing the two M5 screws.

Check mark

Disconnect the check joint pipe located in front of the compressor by removing the braze from the areas shown in the figure.

Check mark

Remove the three M5 screws from the compressor, and disconnect the compressor power line.

Run this procedureArrow right

LEV Replacement

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Refrigerant recovered from the LP side?

Check mark

Select the type of refrigerant circuit

Check mark

Amount of refrigerant recovered (kg)

Check mark

Pillars removed by unscrewing the four M5 screws?

Check mark

LEV coil removed?

Check mark

Select the type of LEV

Check mark

U-pipe removed from in front of the LEV?

Check mark

Pipe brazed to the new LEV?

Run this procedureArrow right

Heat Exchanger Replacement

Check mark

Service side panels removed from the opposite side of the service side

Check mark

Water completely drained from the water circuit

Check mark

Amount of refrigerant collected from the system

Check mark

Pillar removed when replacing the heat exchanger in the 1-system

Check mark

Water pipe disconnected from the heat exchanger to be replaced

Check mark

Upper joint plate removed from the water pipe side

Check mark

Lower support plate on the LEV side removed from the heat exchanger to be replaced

Check mark

Joint plate at the upper portion of the heat exchanger on the LEV side removed

Check mark

LEV coil removed

Run this procedureArrow right
