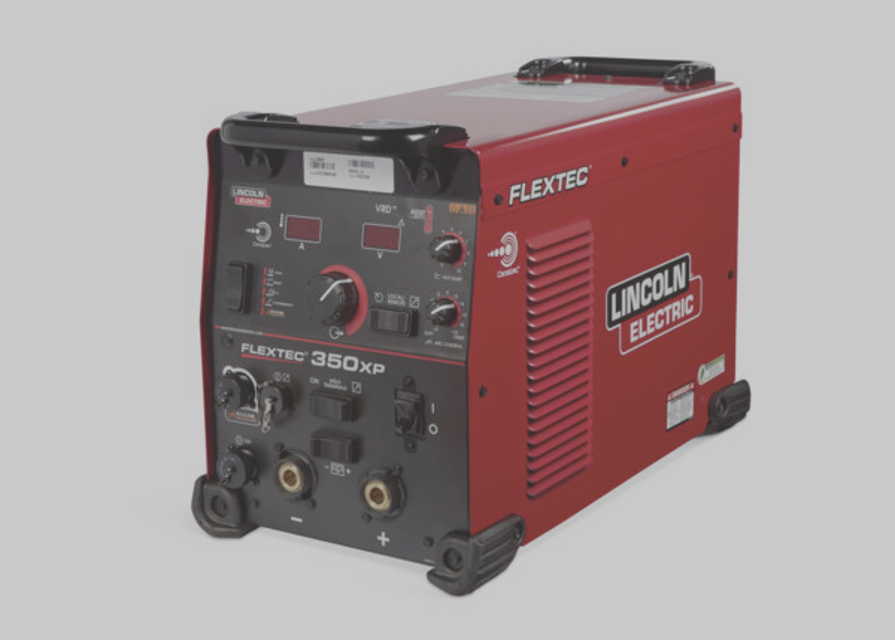

Lincoln Electric Welding Inverter Flextec 350XP

WARNING! Before carrying out service, maintenance and/or repair jobs, fully disconnect power to the machine. Use Personal Protective Equipment (PPE), including safety glasses, dust mask and gloves to avoid injury. This also applies to persons who enter the work area. MOVING PARTS can injure

• Do not operate with doors open or guards off

Have qualified personnel do all maintenance work and troubleshooting work

Machine cleaned with a low pressure air stream?

All printed circuit boards cleaned?

WARNING! Before carrying out service, maintenance and/or repair jobs, fully disconnect power to the machine. Use Personal Protective Equipment (PPE), including safety glasses, dust mask and gloves to avoid injury. This also applies to persons who enter the work area. MOVING PARTS can injure

• Do not operate with doors open or guards off

Have qualified personnel do all maintenance work and troubleshooting work

Connect the resistive load bank and test voltmeter to the welding output terminals

Put dipswitch 1 in the on position

Rotate the Hot Start knob and Arc Control knob to the minimum

WARNING! Before carrying out service, maintenance and/or repair jobs, fully disconnect power to the machine. Use Personal Protective Equipment (PPE), including safety glasses, dust mask and gloves to avoid injury. This also applies to persons who enter the work area. MOVING PARTS can injure

• Do not operate with doors open or guards off

Have qualified personnel do all maintenance work and troubleshooting work

Clean interior of machine with a low pressure air stream

Make a thorough inspection of all components

Look for signs of overheating, broken leads or other obvious problems. Many problems can be uncovered with a good visual inspection

Sign off on the visual inverter inspection

WARNING! Before carrying out service, maintenance and/or repair jobs, fully disconnect power to the machine. Use Personal Protective Equipment (PPE), including safety glasses, dust mask and gloves to avoid injury. This also applies to persons who enter the work area. MOVING PARTS can injure

• Do not operate with doors open or guards off

Have qualified personnel do all maintenance work and troubleshooting work

Connect the resistive load bank and test voltmeter to the welding output terminals

Put dipswitch 1 in the on position

Rotate the Hot Start knob and Arc Control knob to the minimum

WARNING! Before carrying out service, maintenance and/or repair jobs, fully disconnect power to the machine. Use Personal Protective Equipment (PPE), including safety glasses, dust mask and gloves to avoid injury. This also applies to persons who enter the work area. MOVING PARTS can injure

• Do not operate with doors open or guards off

Have qualified personnel do all maintenance work and troubleshooting work

Completely de-energize machine and verify that no residual charge is present on capacitors, etc

Remove case sides to expose input cord connection to input EMI Filter

Remove 2 fasteners holding filter bracket to case bottom

Remove EMI Filter Bracket holding EMI Filter to expose ground connection to case bottom
