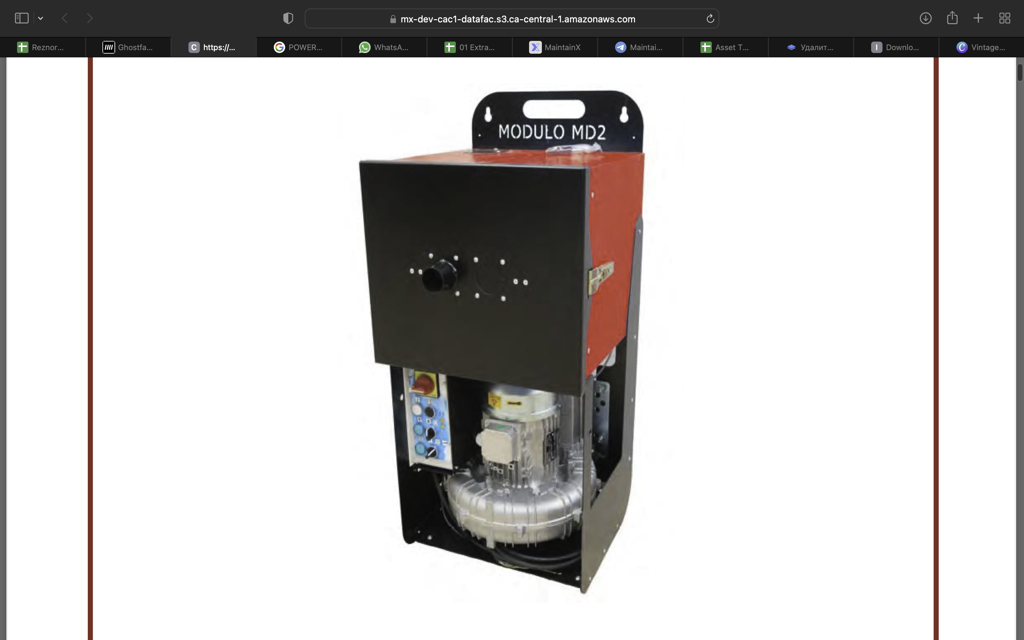

Lincoln Electric TURBINE MODULO MD2 UNIT
Create an account to install this asset package.
Maintenance Plans for Lincoln Electric TURBINE Model MODULO MD2 UNIT
Integrate maintenance plans directly into your work orders in MaintainX.
Impeller Cleaning
- Set the machine vertical by placing the fan on a flat and stable surface
- Loosen the screws and remove the stand
- Loosen the screws of the cover
- Lever up the two grooves located between the body and the cover to remove the cover
- Loosen the screws and remove the washer
- Remove the bearing and the cover of the bearing using an extractor
- Remove the impeller
- Clean and reassemble, in reverse order of assembly
- Make up the seal with Loctite or the like after carefully cleaning the surfaces of the previous seal.
Filter Cartridge Maintenance
- Run unclogging cycles once the work is complete
- Leave the dust to rest in the container
- Empty the container in dedicated skips, as welding and cutting dust must be recycled.
Motor Cleaning
- Clean the motor cooling impeller blades.
Pre Filter Cleaning
- Clean with dry compressed air or immerse in a solution made of water
- Then dry with air.
Sound-Proofing Board Replacement
- Loosen the screws
- Remove the unit silencer
- Take care to not misplace the seals
- Extract the foam from the body of the silencer
- Collect the meshes
- Replace and put back, in reverse order, and remember the seals.
Parts for Lincoln Electric TURBINE MODULO MD2 UNIT
Access the parts list for your equipment in MaintainX.
Discharge Hose
W000386139
40W transformer
W000403084
Contactor
W000403087
Discharge Hose
W000386140
Metal Pre-Filter,
W000340600
Discharge Hose
W000386139
40W transformer
W000403084
Contactor
W000403087
Discharge Hose
W000386140
Metal Pre-Filter,
W000340600
Discharge Hose
W000386139
40W transformer
W000403084
Contactor
W000403087
Discharge Hose
W000386140
Metal Pre-Filter,
W000340600
