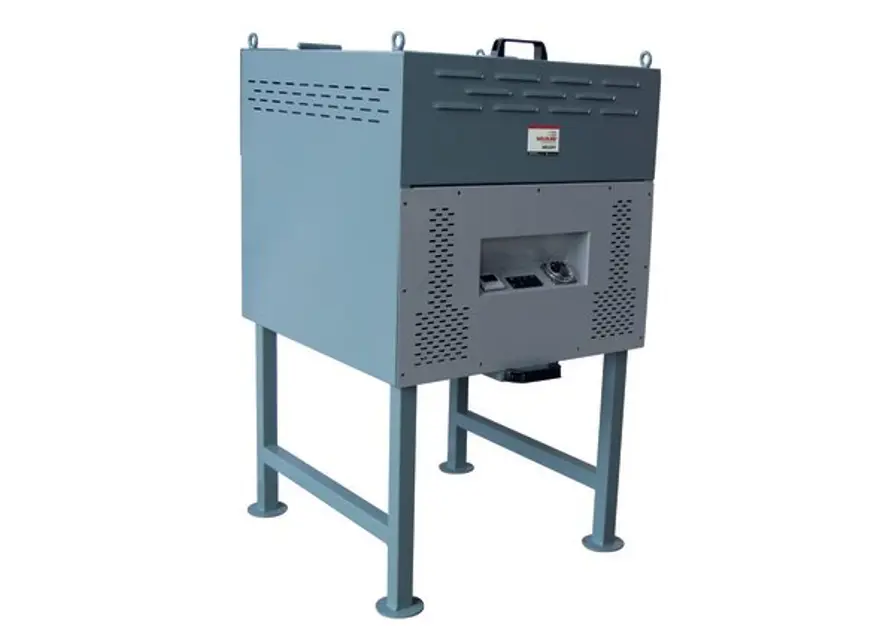

Lincoln Electric Hopper Drying Oven WELDRY FW200
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Lincoln Electric Hopper Drying Oven WELDRY FW200
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Lincoln Electric Hopper Drying Oven WELDRY FW200
Create an account to install this asset package.
Maintenance Plans for Lincoln Electric Hopper Drying Oven Model WELDRY FW200
Integrate maintenance plans directly into your work orders in MaintainX.
Oven Check
- Check the oven is always in efficient condition
- Check the wiring cable and, if damaged, replace it immediately
- Check the heating elements are clean from fl ux slags and the temperature sensors are correctly fixed on the heating element.
Heating Element Replacement
- Remove the metal hat shaped cover located on the rear of the oven
- Disconnect the faulty heating element and replace with a new one having the same properties and sizes
- Fit the new heating element
- Restore correctly the connections; should the replaced heating element be the one on which the temperature feeler is connected; remember to fi x the feeler on the new heating element
- On the contrary, the heating elements temperature could damage the fl ux and the same heating elements
- Reassemble the bottom cover on the rear of the oven
- Switch on the oven main power switch for few minutes to eliminate any possible humidity residual on the new heating element. Switch it off and wait about 15 minutes before switching it on again and making the oven on operation. This allows the heating element to get stable and have a better long-life
- The oven is now ready for operation.
