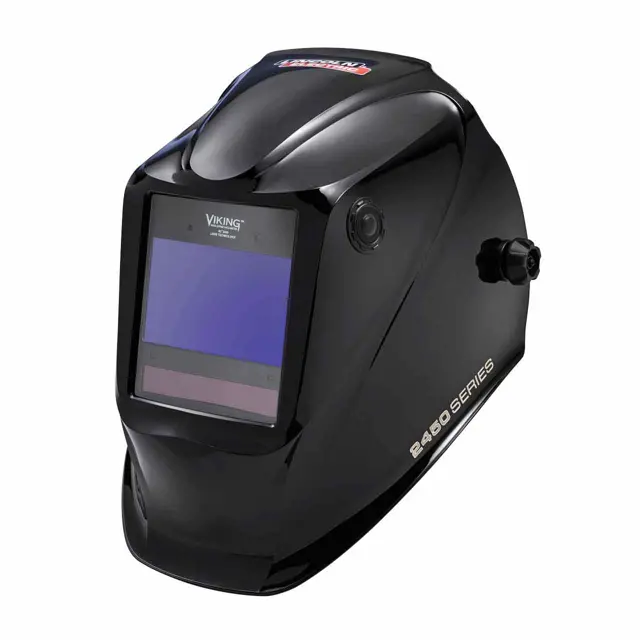

Lincoln Electric Auto Darkening Helmet 2450 SERIES
Need answers fast?
Explore the manual using AI.
The Lincoln Electric Auto Darkening Helmet 2450 Series offers advanced protection and comfort for welders. This high-quality helmet features an auto-darkening lens that enhances visibility and safety during welding tasks, making it an essential tool for professionals in the industry.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Lincoln Electric Auto Darkening Helmet 2450 SERIES
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Lincoln Electric Auto Darkening Helmet 2450 SERIES
Create an account to install this asset package.
Maintenance Plans for Lincoln Electric Auto Darkening Helmet Model 2450 SERIES
Integrate maintenance plans directly into your work orders in MaintainX.
Front Clear Cover Lens Replacement
- Replace the front cover lens if it is damaged
- Remove ADF holder assembly
- Remove front cover lens from helmet assembly
- Carefully remove gasket from cover lens
- Install new cover lens into gasket and assemble to helmet shell
- Make sure to assemble cover lens and gasket into helmet shell the same way as it was removed.
Inside Clear Lens Replacement
- Replace the inside clear lens if it is damaged
- Place your fingernail in recess below cartridge view window and flex lens upwards until it releases from edges of cartridge view window.
Shade Cartridge Replacement
- Remove ADF holder assembly from helmet shell
- Flex top end of the ADF holder to allow for ADF cartridge to be removed from frame
- Install new ADF cartridge into frame; - Make sure that the ADF cartridge is inserted in ADF holder correctly
- Install ADF holder assembly into helmet shell.
Helmet Cleaning
- Clean helmet by wiping with a soft cloth
- Clean cartridge surfaces regularly. Do not use strong cleaning solutions
- Clean sensors and solar cells with soapy water solution and a clean cloth and wipe dry with a lint-free cloth.
Parts for Lincoln Electric Auto Darkening Helmet 2450 SERIES
Access the parts list for your equipment in MaintainX.
Headgear Assembly
KP2929-1
Adf Cartridge
KP2932-1
Inside Clear Lens
KP2931-1
Sweatband
KP2930-1
Outside Clear Lens
KP2898-1
Headgear Assembly
KP2929-1
Adf Cartridge
KP2932-1
Inside Clear Lens
KP2931-1
Sweatband
KP2930-1
Outside Clear Lens
KP2898-1
Headgear Assembly
KP2929-1
Adf Cartridge
KP2932-1
Inside Clear Lens
KP2931-1
Sweatband
KP2930-1
Outside Clear Lens
KP2898-1
