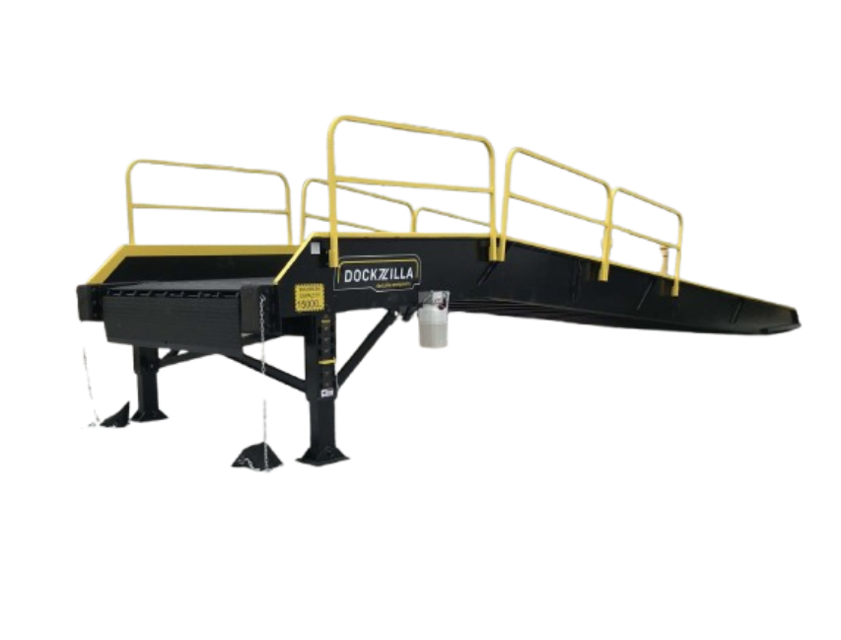

Leum Engineering Portable Loading Dock DFC3809632H

Lockout/Tagout electrical power according to OSHA regulations

Post safety warnings and barricade work area at dock level and ground level

Ensure maintenance strut is properly installed before working under the leveler

Is the leveler exposed to harsh environments?

Consult Dockzilla Co. for accelerated maintenance requirements if necessary

Perform all daily maintenance tasks

⚠ WARNING: DO NOT install maintenance strut with 1 person. Installation of the maintenance strut requires 2 people. The maintenance strut is required whenever accessing the area beneath the platform.

Press the RAISE button to fully raise the leveler platform. Keep the RAISE button pressed until step 2 is complete.

Remove the safety pin holding the strut in place and remove the strut from the leveler frame.

Verify nothing is in the way of the leveler platform, then release the RAISE button and lower the leveler into its stored position.

⛔ DANGER: DO NOT stand directly in front of the lip when raising the leveler platform. Stand to the side of the leveler.

Lockout/Tagout electrical power according to OSHA regulations

Post safety warnings and barricade work area at dock level and ground level

Ensure maintenance strut is properly installed before working under the leveler

Inspect for damaged parts or erratic operation

Are there any broken or worn parts?

Describe any broken or worn parts

Repair any broken or worn parts as needed

⚠ WARNING: DO NOT install maintenance strut with 1 person. Installation of the maintenance strut requires 2 people.

Press the RAISE button to fully raise the leveler platform.

Insert the narrower end of maintenance strut into the hole in the lip.

Place the other end of the maintenance strut on the peg located on the leveler frame.

Align the hole at the bottom of the maintenance strut with the hole in the peg.

Verify that the bottom of the maintenance strut is seated properly and is approximately vertical, then release the RAISE button.

Install safety pin through peg to hold strut in place (Figure 12b).
