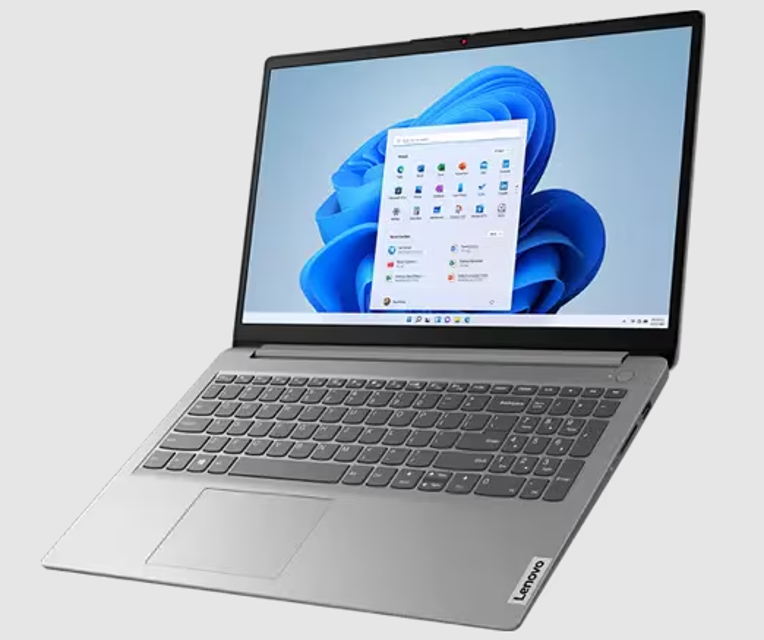

Lenovo Laptop IdeaPad 1 14IAU7
Create an account to install this asset package.
Maintenance Plans for Lenovo Laptop Model IdeaPad 1 14IAU7
Integrate maintenance plans directly into your work orders in MaintainX.
2280 Solid-State Drive Removal
Ensure the following FRUs (or CRUs) have been removed
Disconnect the battery pack cable from the system board
Remove the screw securing the battery pack
Remove the 2280 solid-state drive by pulling it away from the slot
Camera Module Removal
Ensure the following FRUs (or CRUs) have been removed
Camera Module Disconnection and Removal
Disconnect the camera connector
Remove the camera
Speakers Removal
Ensure the following FRUs (CRUs) have been removed
Disconnect the battery pack cable from the system board
Disconnect the speaker connector from the system board
Carefully remove the speakers
Inspect the removed speakers for any visible damage
Document any issues found during the removal process
Dispose of any damaged components according to the disposal guidelines
LCD Bezel Removal
Ensure the following FRUs (or CRUs) have been removed
LCD Bezel Removal Steps
Remove two screws
Remove the LCD bezel
I/O Board Removal
Pre-removal Checks
Ensure the following FRUs (or CRUs) have been removed
Cable Disconnection and Screw Removal
Disconnect the battery pack cable from the system board
Disconnect the I/O board cable from the system board
Disconnect the fingerprint board cable from the system board
Remove four screws
I/O Board Removal
Open the left hinge
